backfit holder 3.0

Name: backfit holder 3.0
SKU: 61227
Price: 19.00 EUR
Availability: InStock

€ 19,00 (excl. VAT)

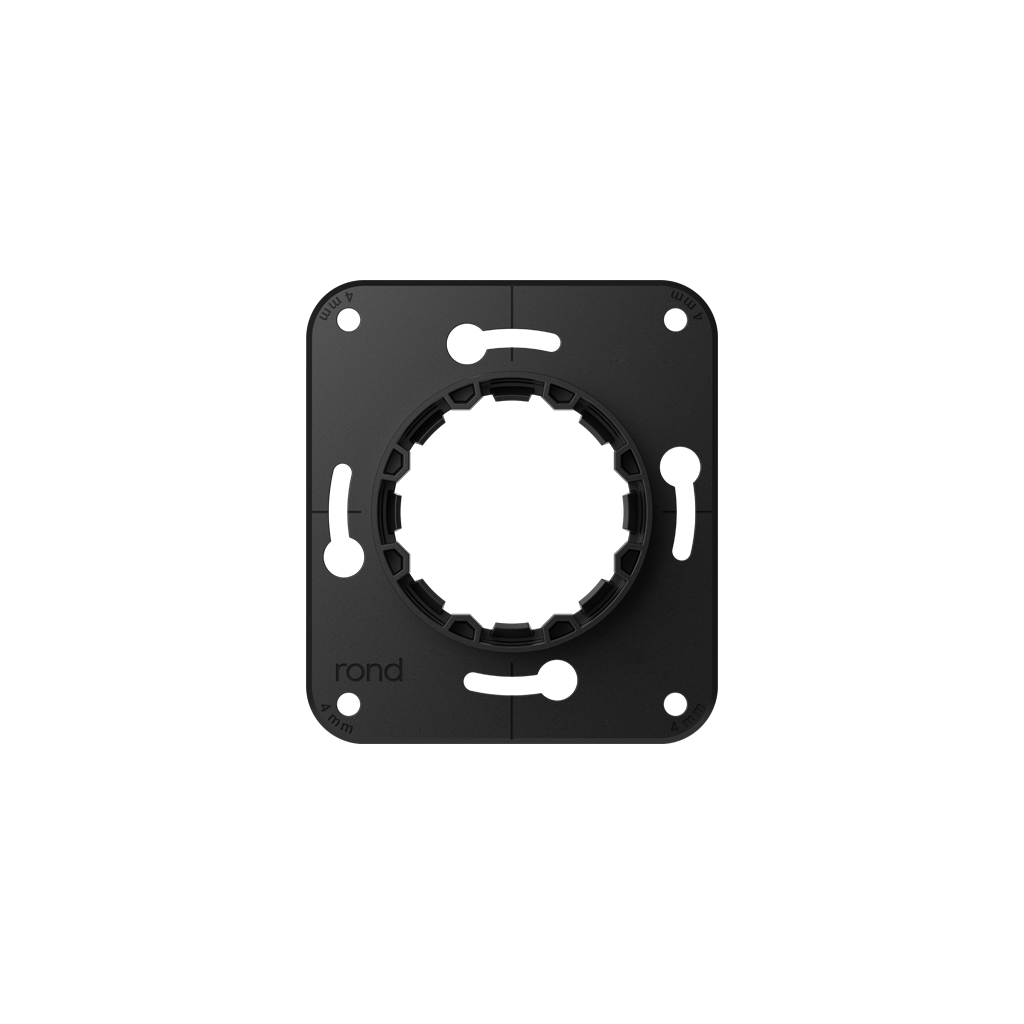

The rond 3.0 backfit holder allows you to install your rond 3.0 socket in wood, veneer or stone. compatible with standard junction boxes (minimum depth 47mm required). Available in 4 different variants for panel thicknesses from 11 to 23mm.

Product details Downloads

Introducing rond 3.0 series.
Truly trimless, almost invisible.

Product details

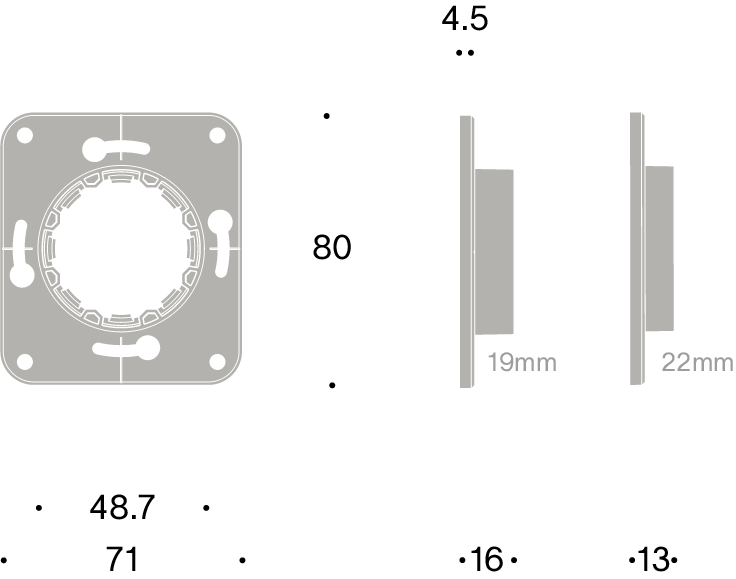

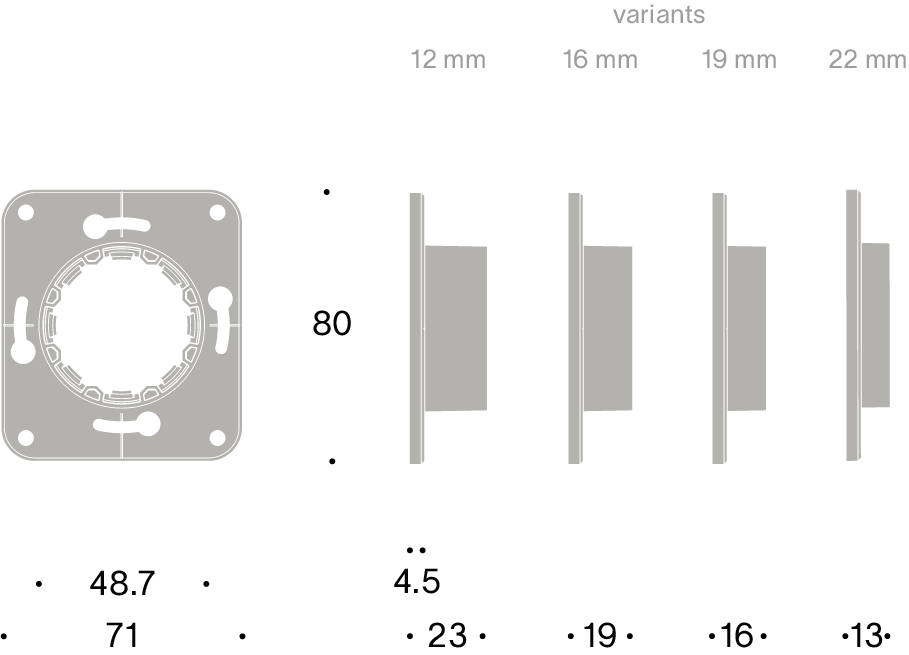

kit size

h80 w71 d13 (22mm) h80 w71 d16 (19mm) h80 w71 d19 (16mm) h80 w71 d23 (12mm)

weight

0.2kg

material

PP-GF30

location

indoor

compatibility

rond 3.0 series

junction box

required (min. depth 47mm)

installation hole

40mm (stone) 42mm (other materials)

panel thickness

21-22-23mm 18-19-20mm 15-16-17mm 11-12-13mm

specs

installation

Compatible products

All products

stone socket 3.0 type E

socket 3.0 type E/F
