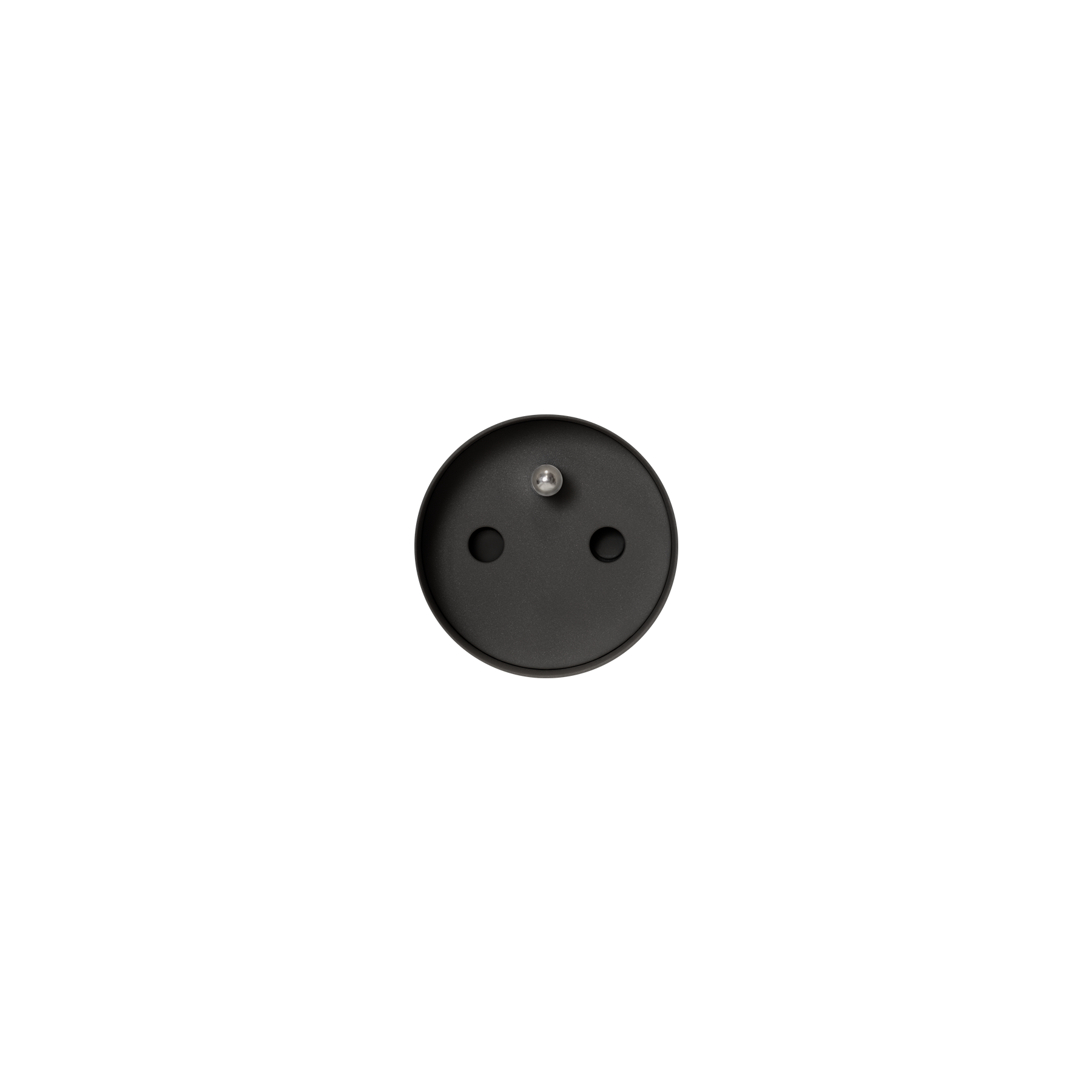

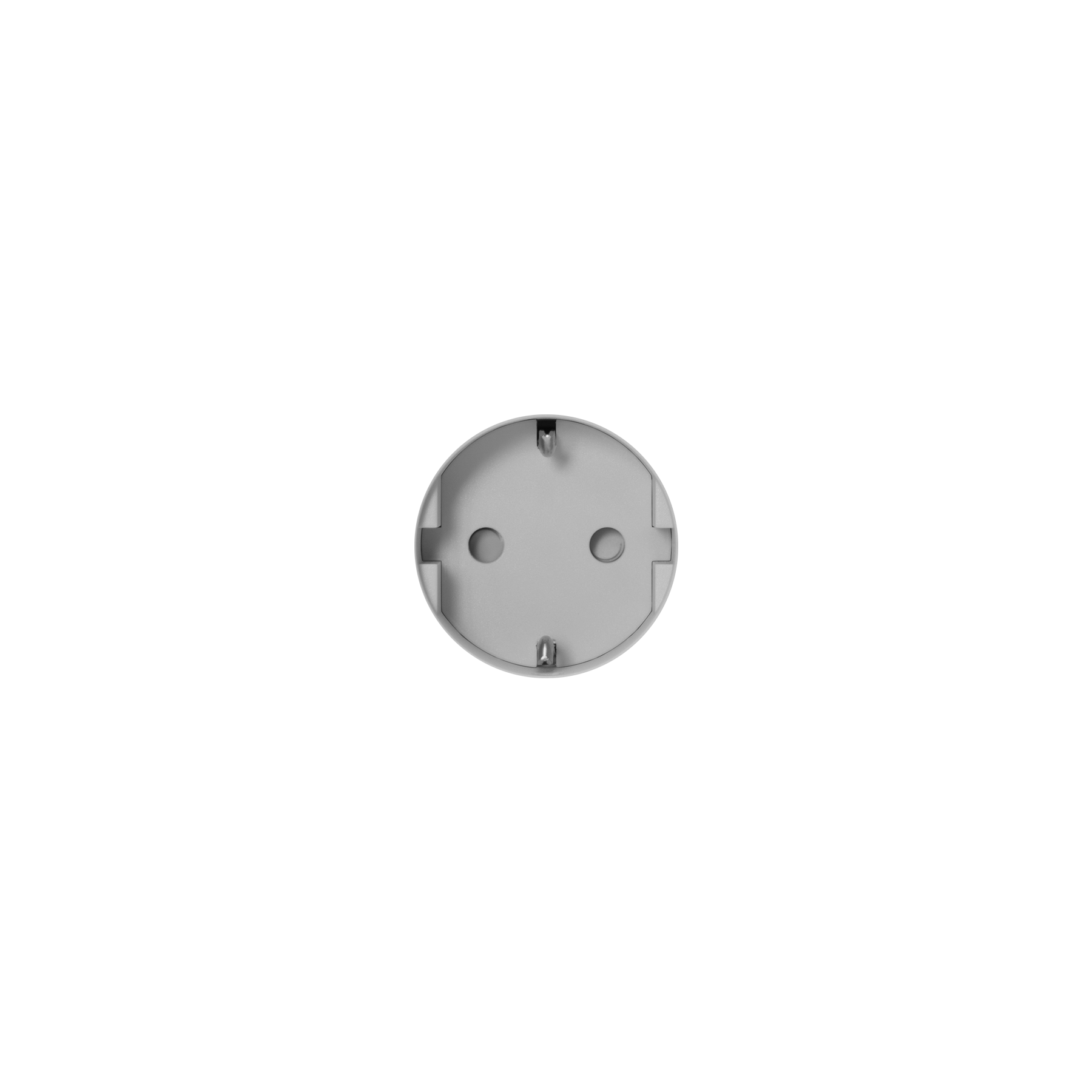

socket 3.0 type E/F

€ 29,00  (excl. VAT)

Introducing rond 3.0 – the truly trimless socket. Perfectly flush in plastered walls, wood, veneer, or stone. Front-accessible and fully removable with the rond 3.0 removal tool.



product overview

Product details
Downloads
Configure yours

Ships within 2 business days.

Introducing rond 3.0 series.
Truly trimless, almost invisible.

Easy to install.

Easy to remove.

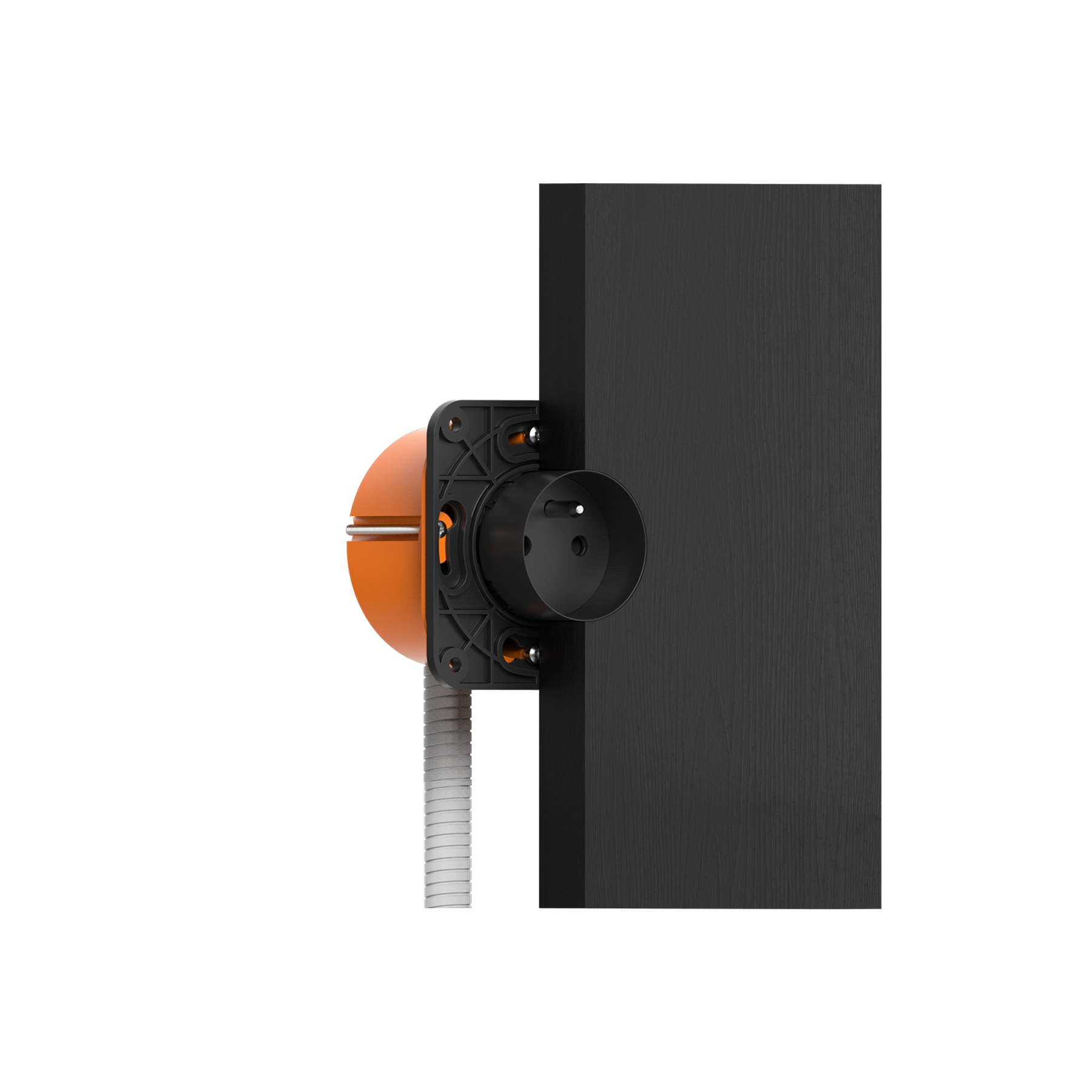

The rond 3.0 socket secures directly into your chosen panel material with the backfit holder 3.0. Designed for panels 18-23 mm thick, it can be easily removed from the front using the rond 3.0 removal tool.

Configure yours

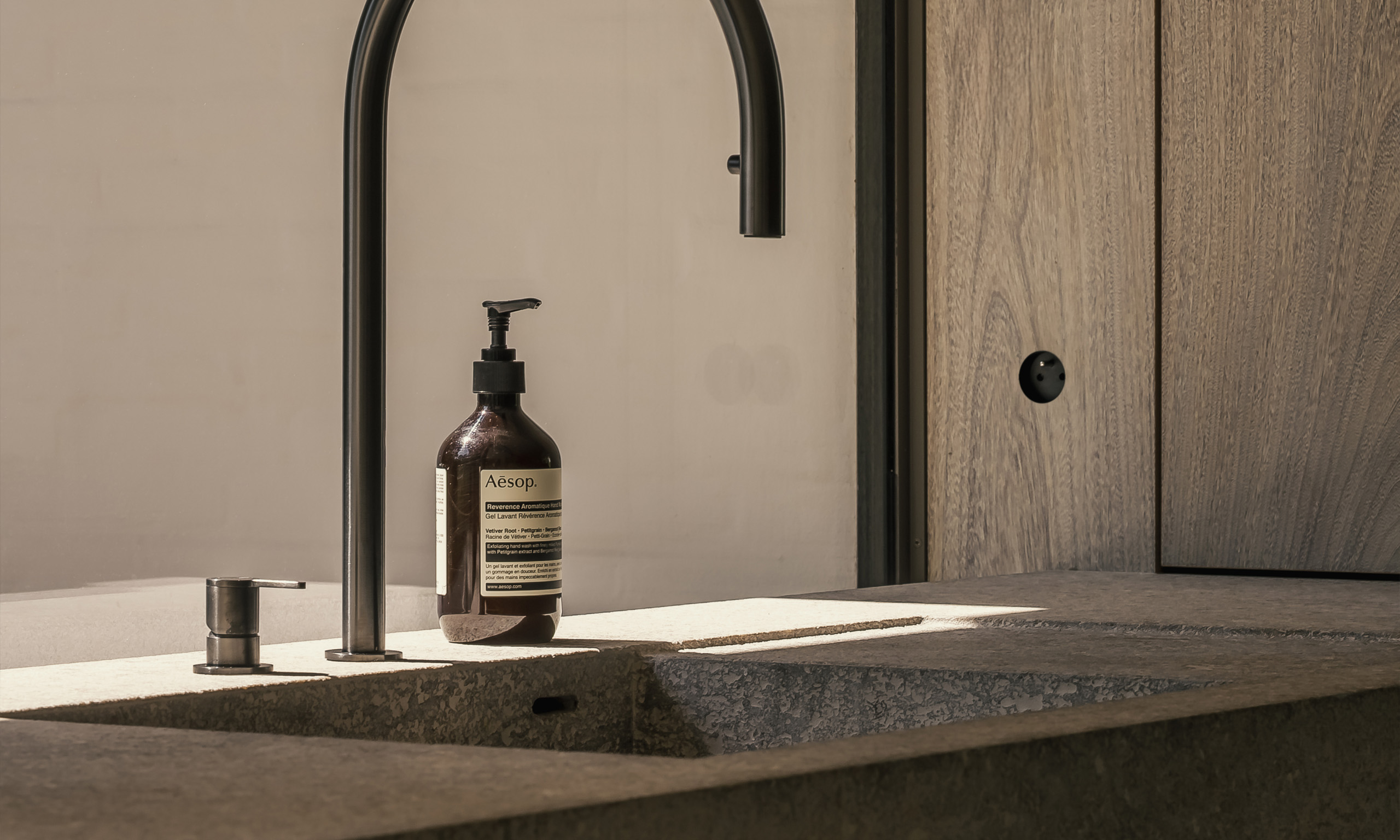

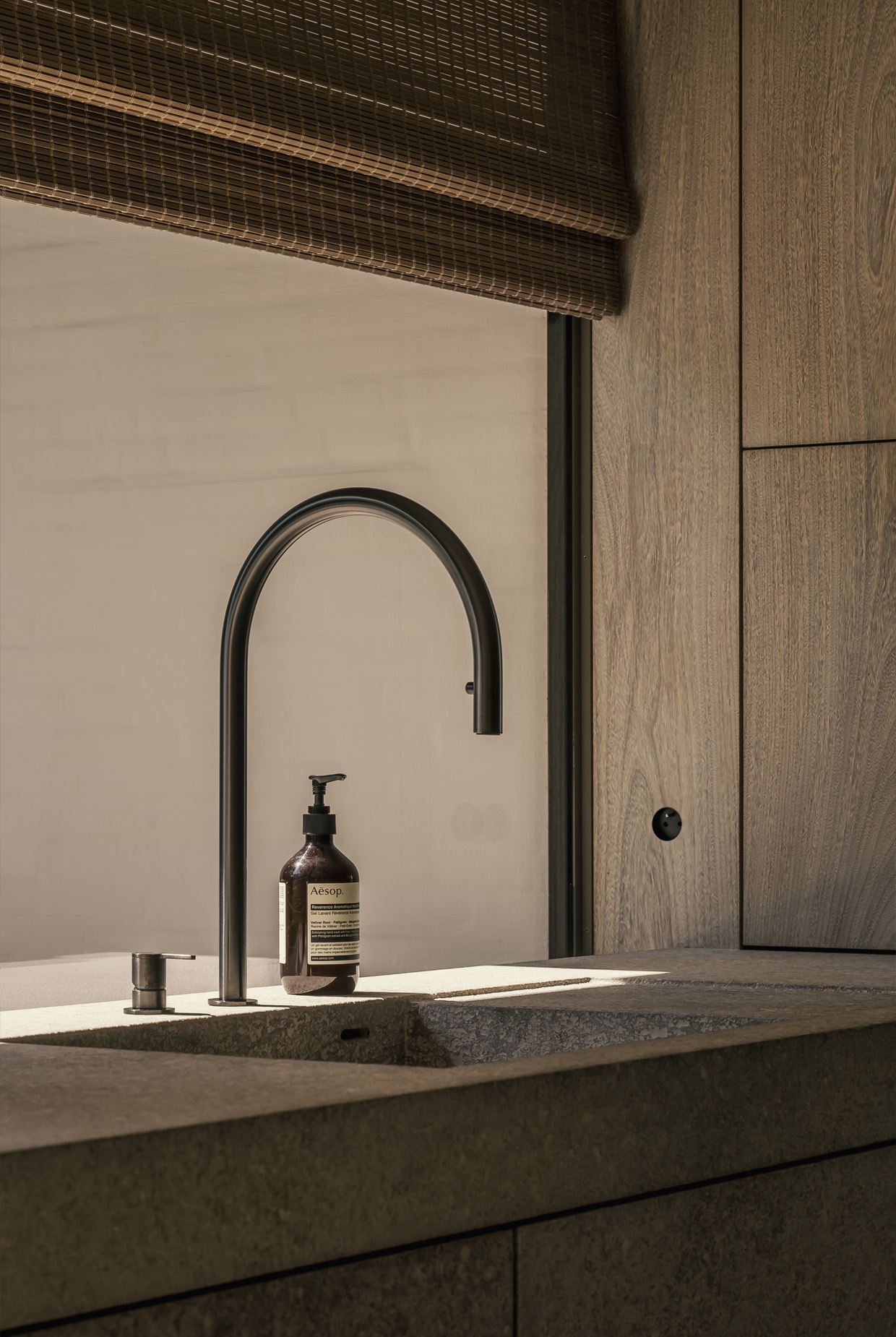

Designed to disappear.
The perfect match for any material.

Product details

Accessories

backfit holder 3.0
retrofit plaster ring 3.0 0042-0001
removal tool 3.0 0042-0000

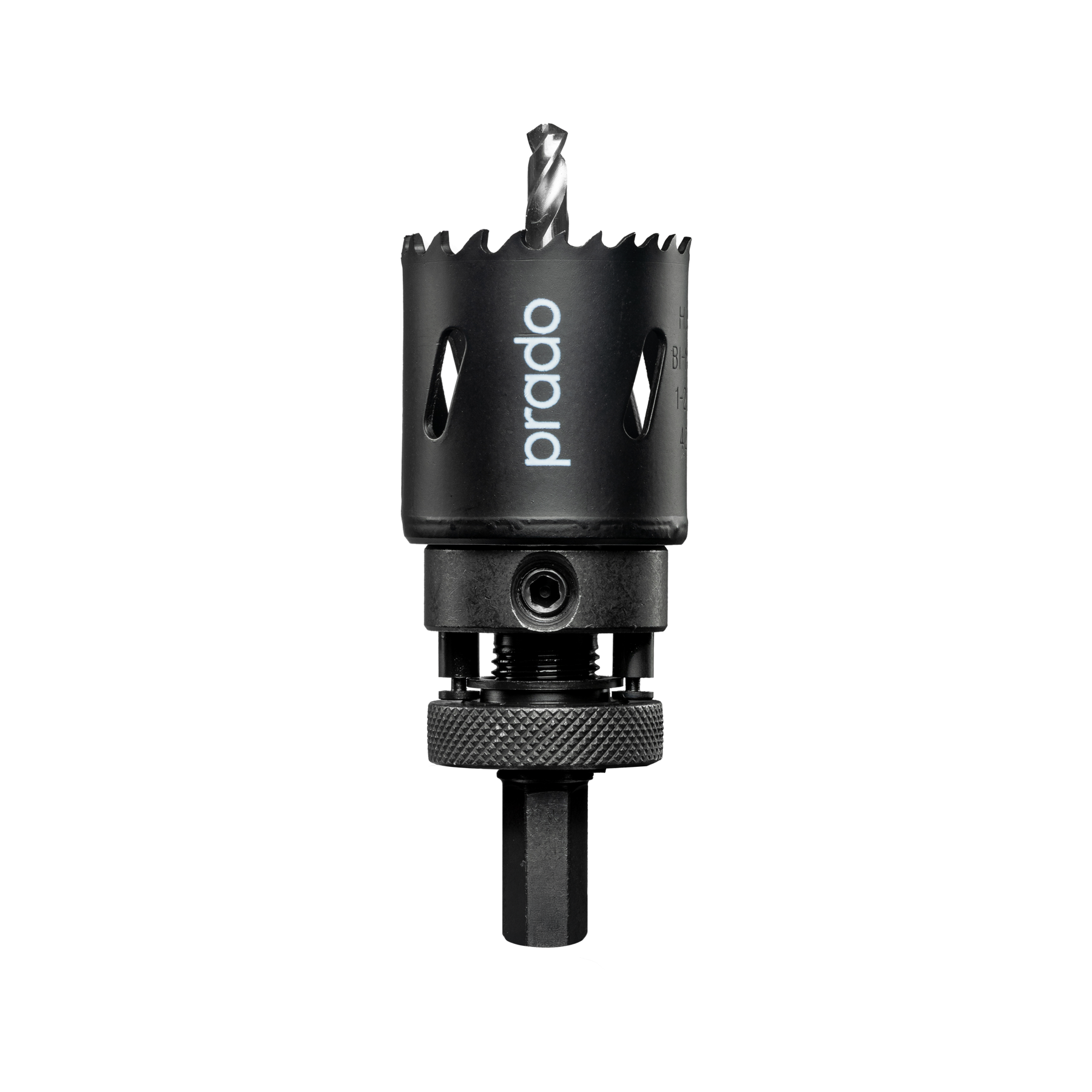

bi-metal hole saw Ø42 + adapter

Specifications

application
16A/250V

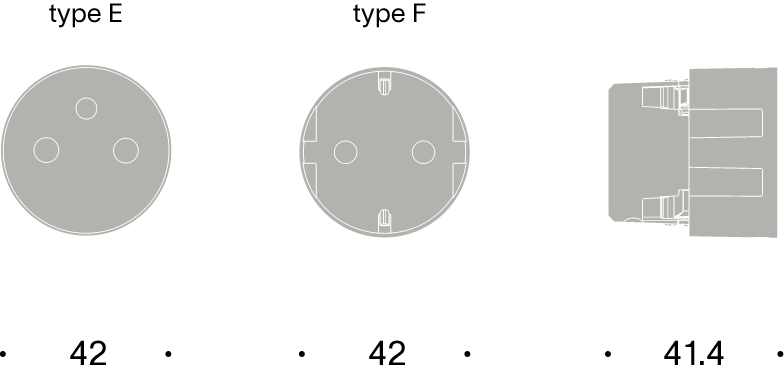

flush-mounting depth
38.6mm (type E) 41.4mm (type F)
wire stripping length
13.8mm
wire capacity
up to 4 x 2.5mm² per terminal
wire fixation
screw terminal (TX8)
ambient temperature
-5 till +40°C
IP, IK rating
IP21-D IK06
marking
CE

Downloads

type E - specs
type E - installation
type F - specs
type F - installation

rond 3.0 series
Choose your application.

Watch the film

  • rond 3.0 socket

    For plastered walls, wood, veneer and stone.

    € 29 excl. VAT
    type E/F - 16 Amp, 250 Volt
    comes with screw terminals, junction box required
    compatible with rond 3.0 backfit holder and 3.0 retrofit plaster ring
    backfit holder requires a Ø42 hole and a 18-23 mm panel thickness
    front-accessible and fully removable with rond 3.0 removal tool
    Installation

  • rond 3.0 stone socket

    For stone applications only.

    € 49 excl. VAT
    type E only - 16 Amp, 250 Volt
    comes with screw terminals, junction box required
    compatible with rond 3.0 backfit holder
    backfit holder requires a Ø40 hole and a 18-23 mm panel thickness
    front-accessible and fully removable with rond 3.0 removal tool
    Installation
