Configure your socket.

Personalise the minimalist unifit series for your project.

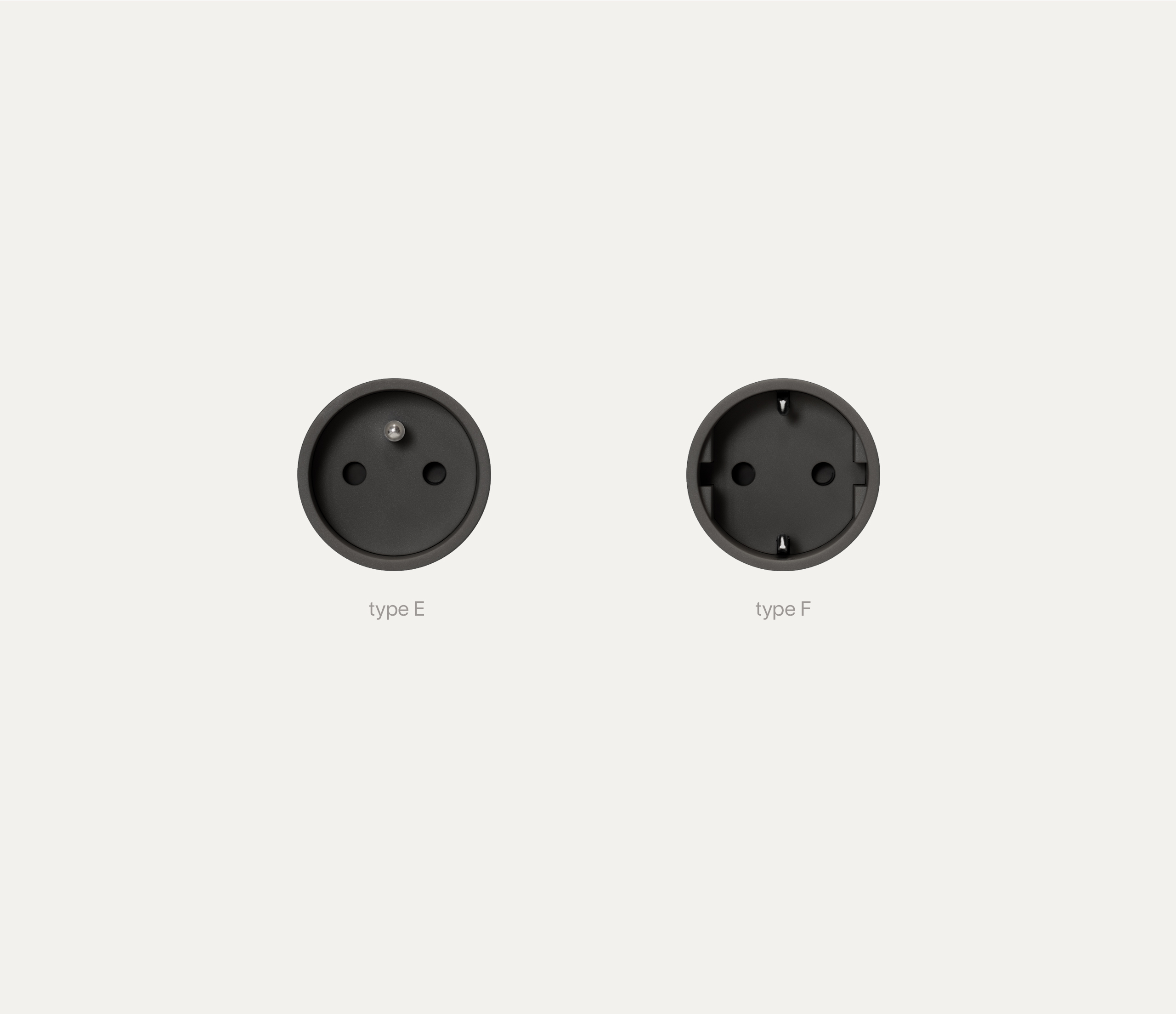

Socket type.

Choose the right type for your country.

Type E

Belgium, France, ...

Type F

Netherlands, Germany, Luxembourg, Sweden, Denmark, Finland, Norway, Austria, Iceland, Spain, Italy, Portugal, ...

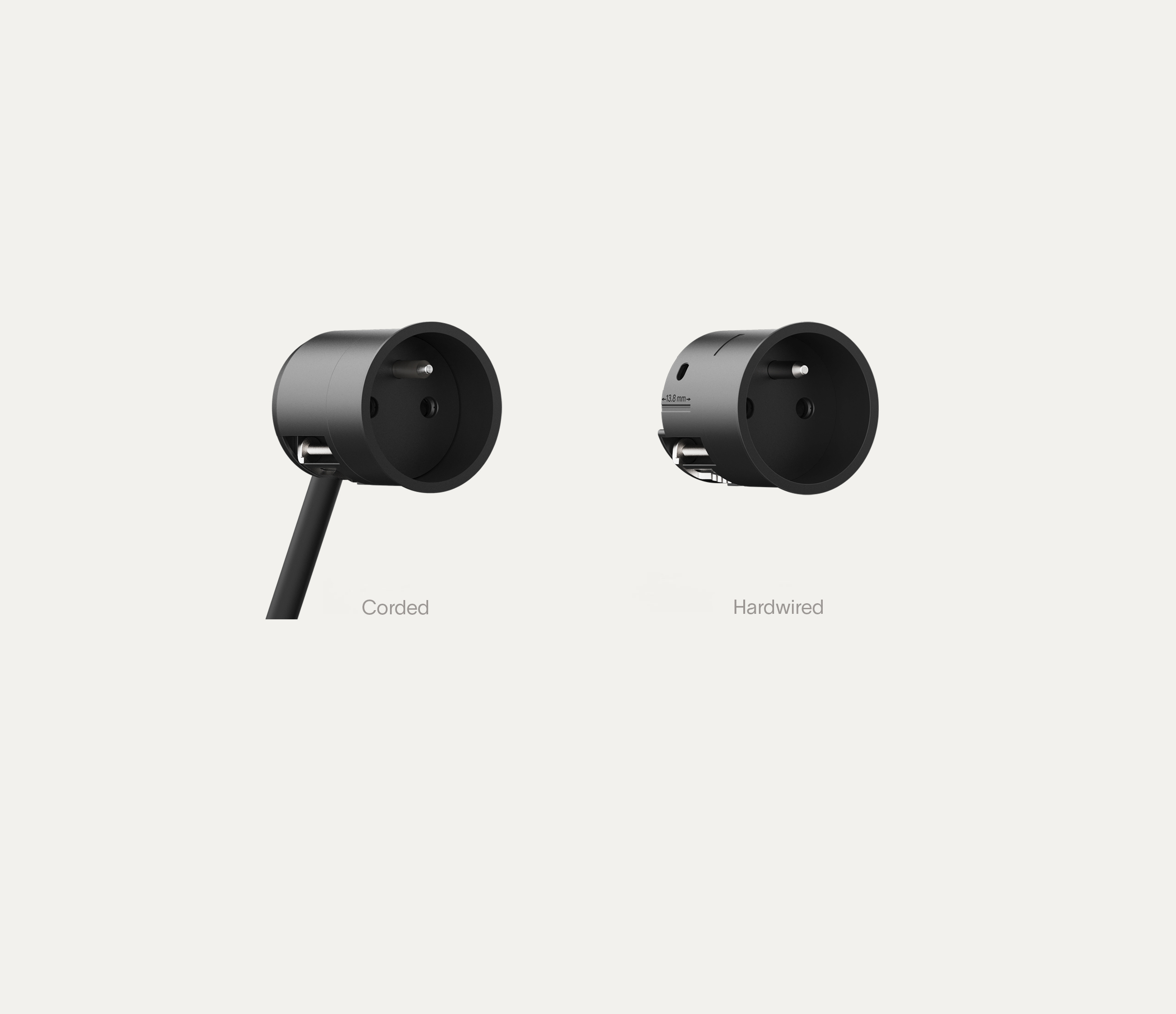

Cabling.

Installing with or without a junction box?

Hardwired

This version requires to be hard wired and comes with screw terminals, just like rond 2.0 sockets and others. Unifit hardwired requires a junction box for installation.

Corded

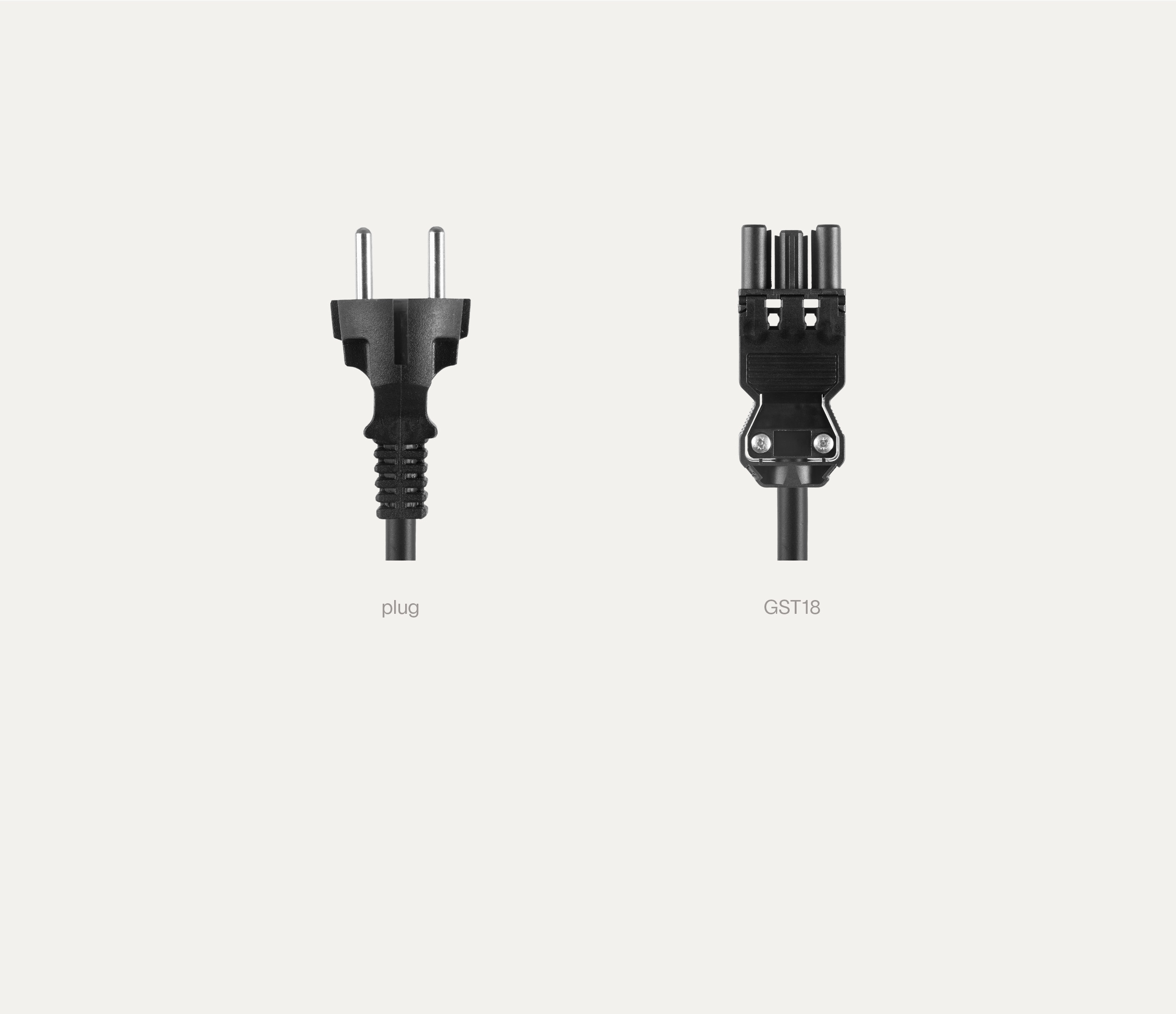

The 'wired' version is a corded version, it comes with a 1.5 m cable and a plug or GST18 connector, which makes it perfect for installations without a junction box, like furniture.

Connection type.

Select the connection that fits your setup.

Application.

In which surface will you install?

    Compatibility.

    Optional.

      Finish.

      Choose your favourite.
        Select color
        No product found, please select all options.
        Ships within 2 business days.
        Select all desired options.
        Ships within 2 business days.
        Selected module

        excl. VAT
        Accessories
        Ships within 2 business days.

        Product details

        Downloads

        corded E - specs
        corded F - specs
        corded - installation
        hardwired E - specs
        hardwired F - specs
        hardwired - installation

        Accessories

        plaster ring adjustable unifit type E/F 4200-1000
        bi-metal hole saw Ø42 + adapter

        Specifications

        installation hole
        Ø42 mm
        flush mount countersink
        Ø45.2 x 1 mm depth
        panel thickness
        16-32 mm (adjustable lugs)
        application
        16A / 250V
        flush mount depth
        55 mm
        ambient temperature
        -5 till +40˚C
        IP- / IK rating
        IP21-D IK06
        connection hardwired
        screw terminals
        connection corded
        1.5m cord + schuko plug or GST18
        marking
        CE
        other
        patent pending
