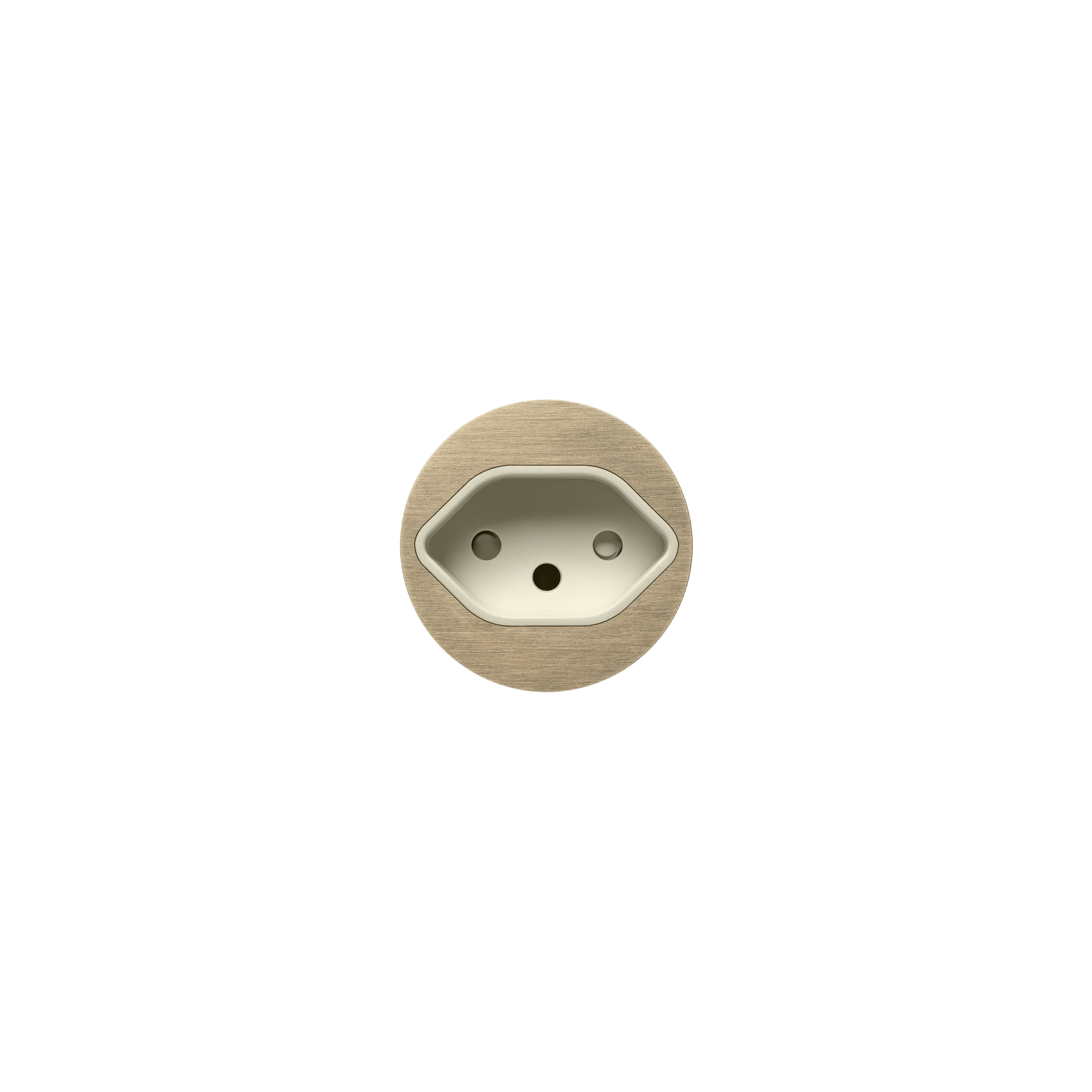

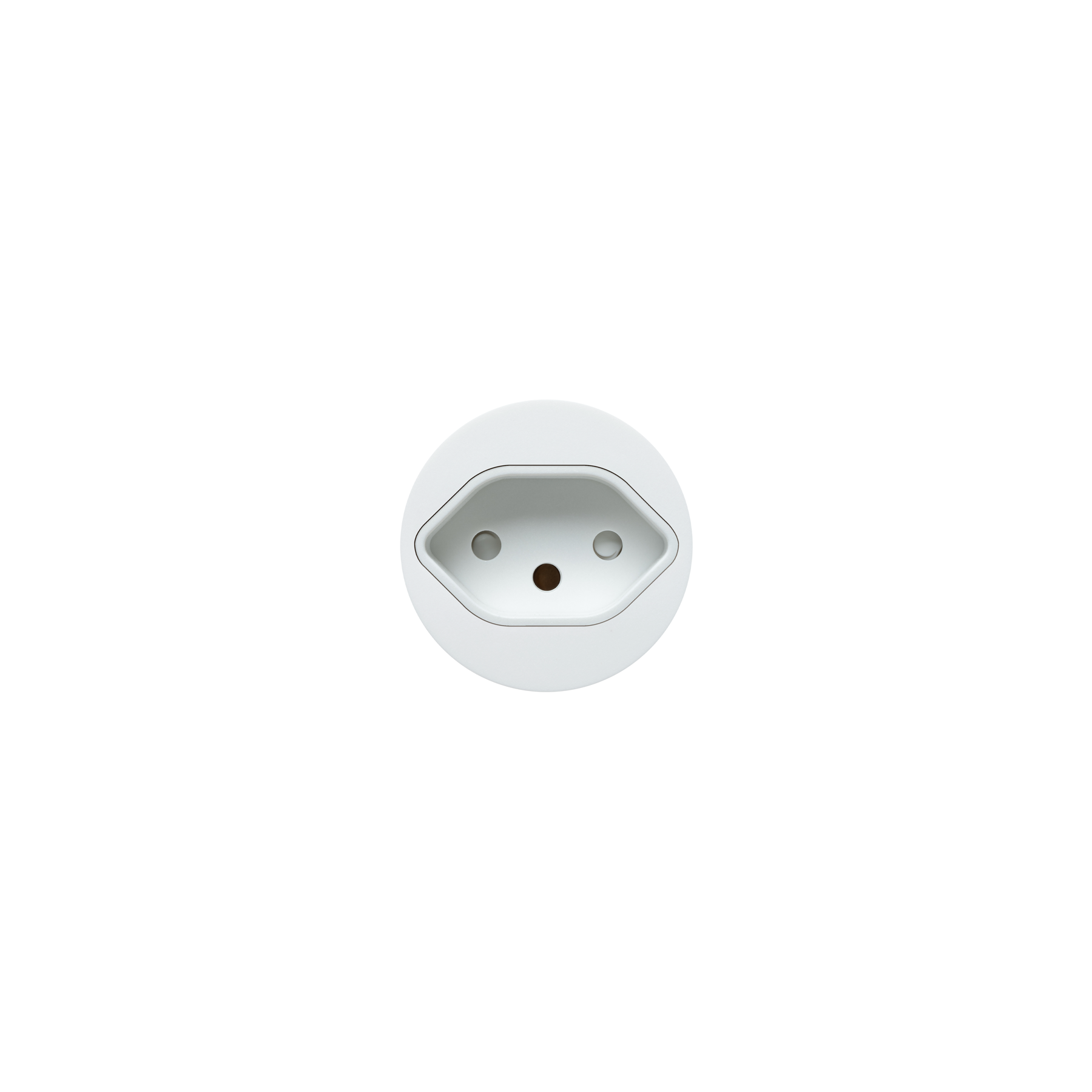

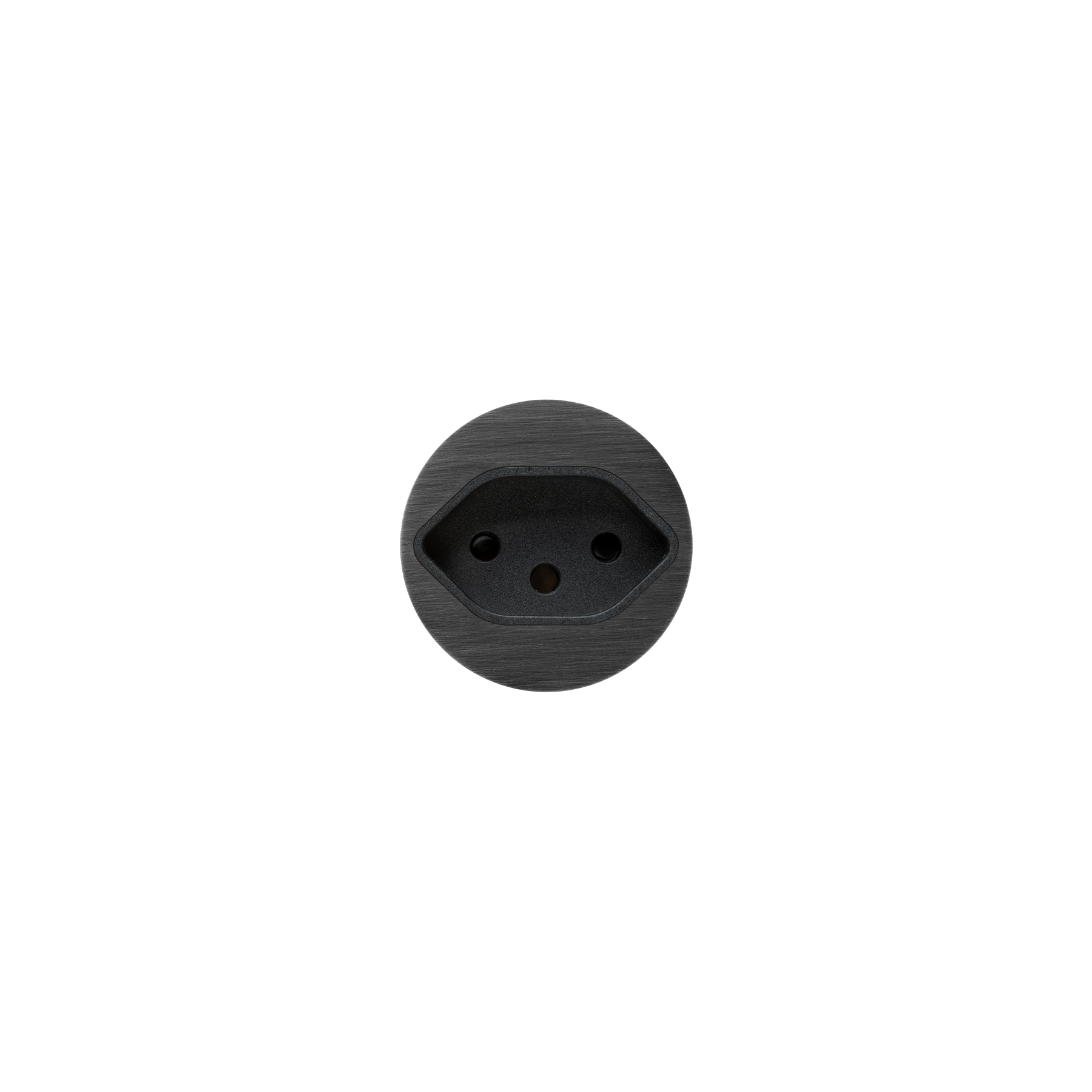

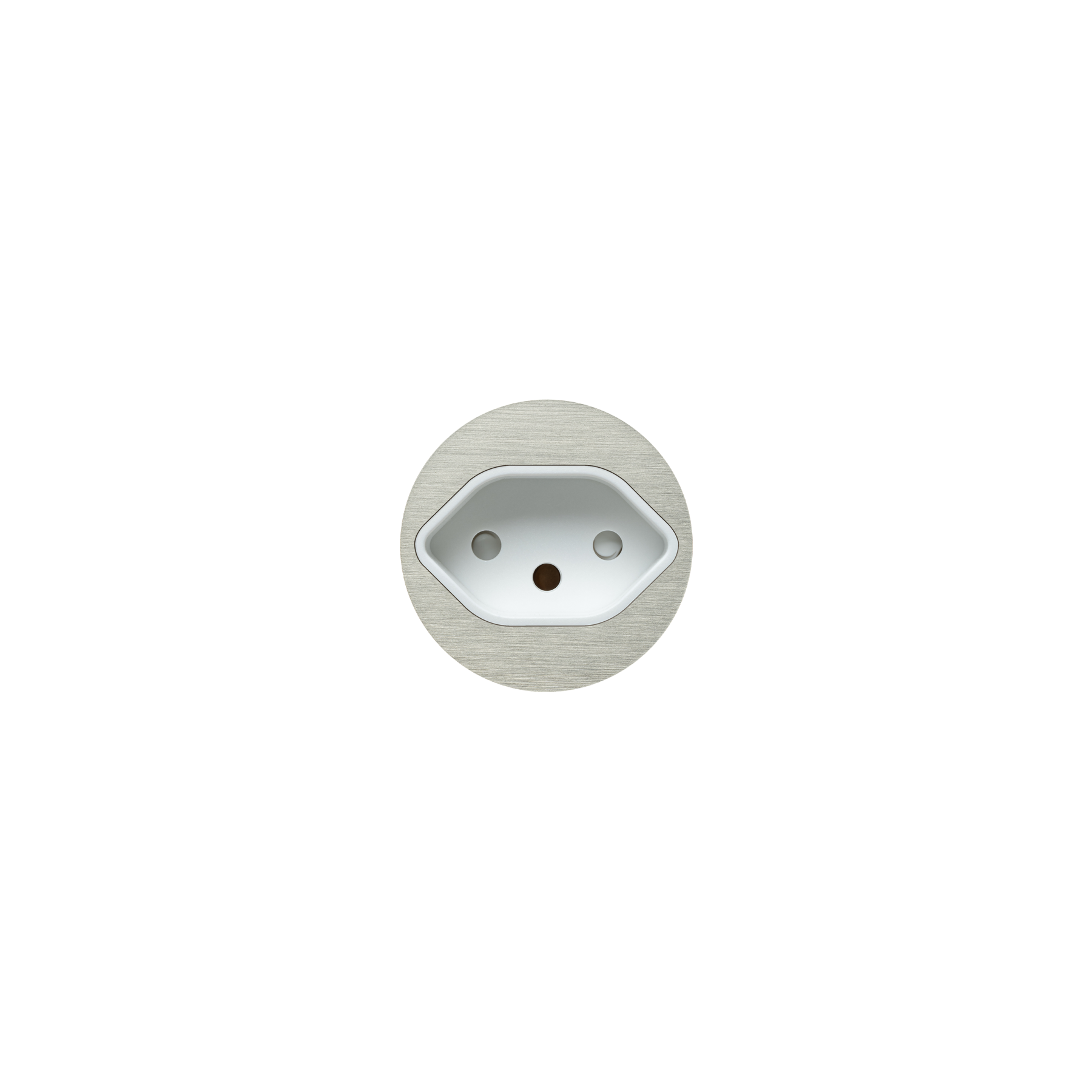

unifit socket type J
€ 69,00 (excl. VAT)

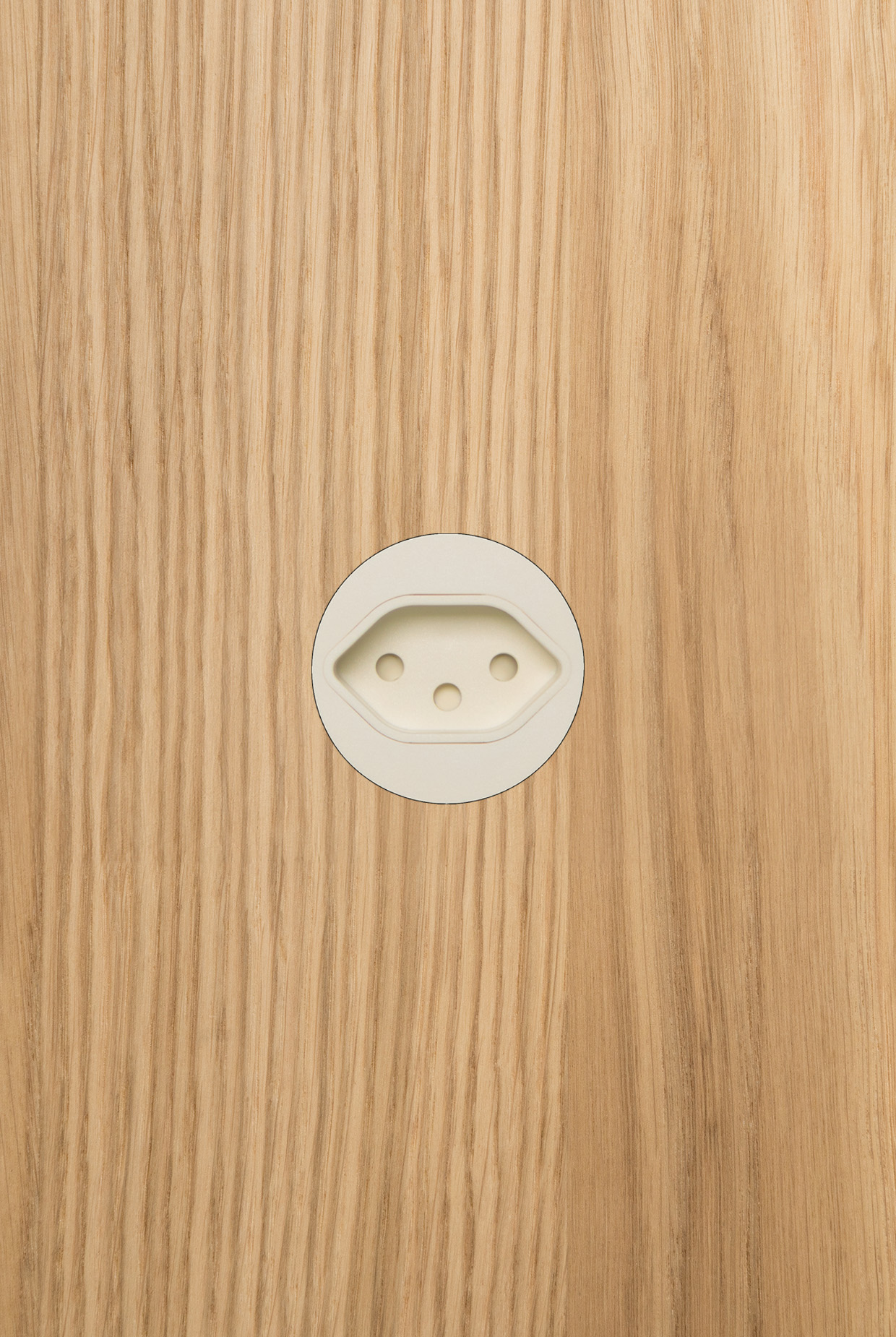

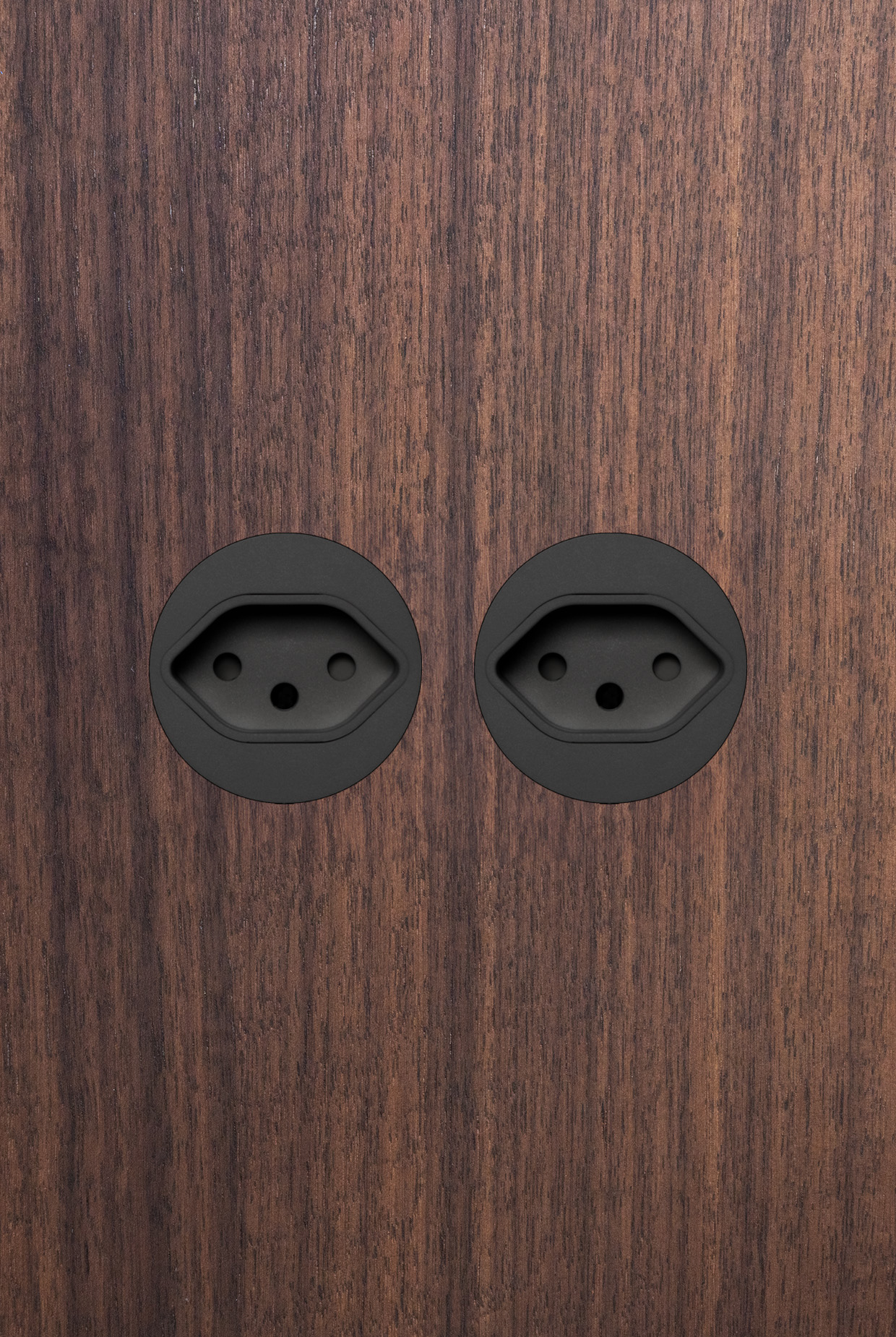

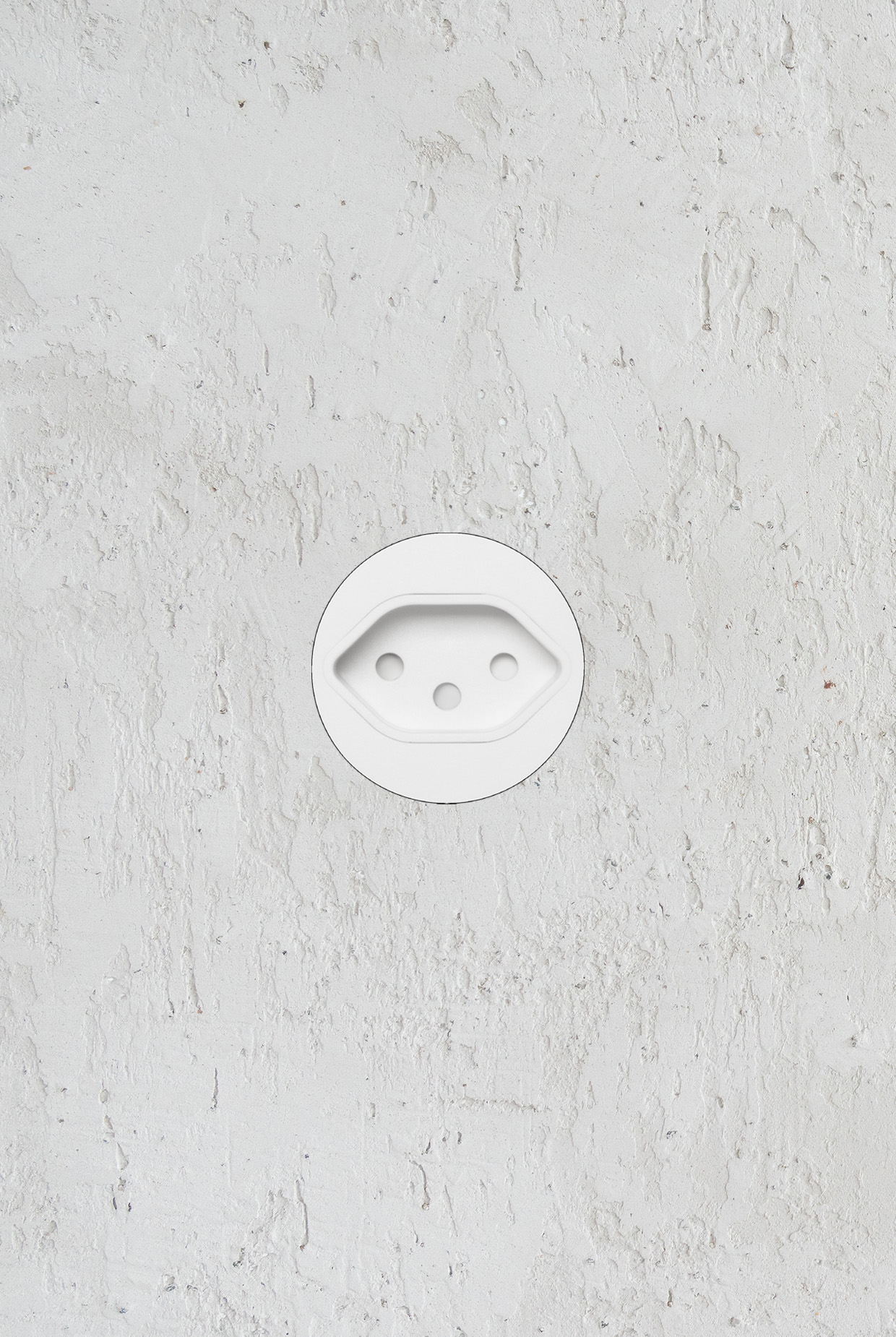

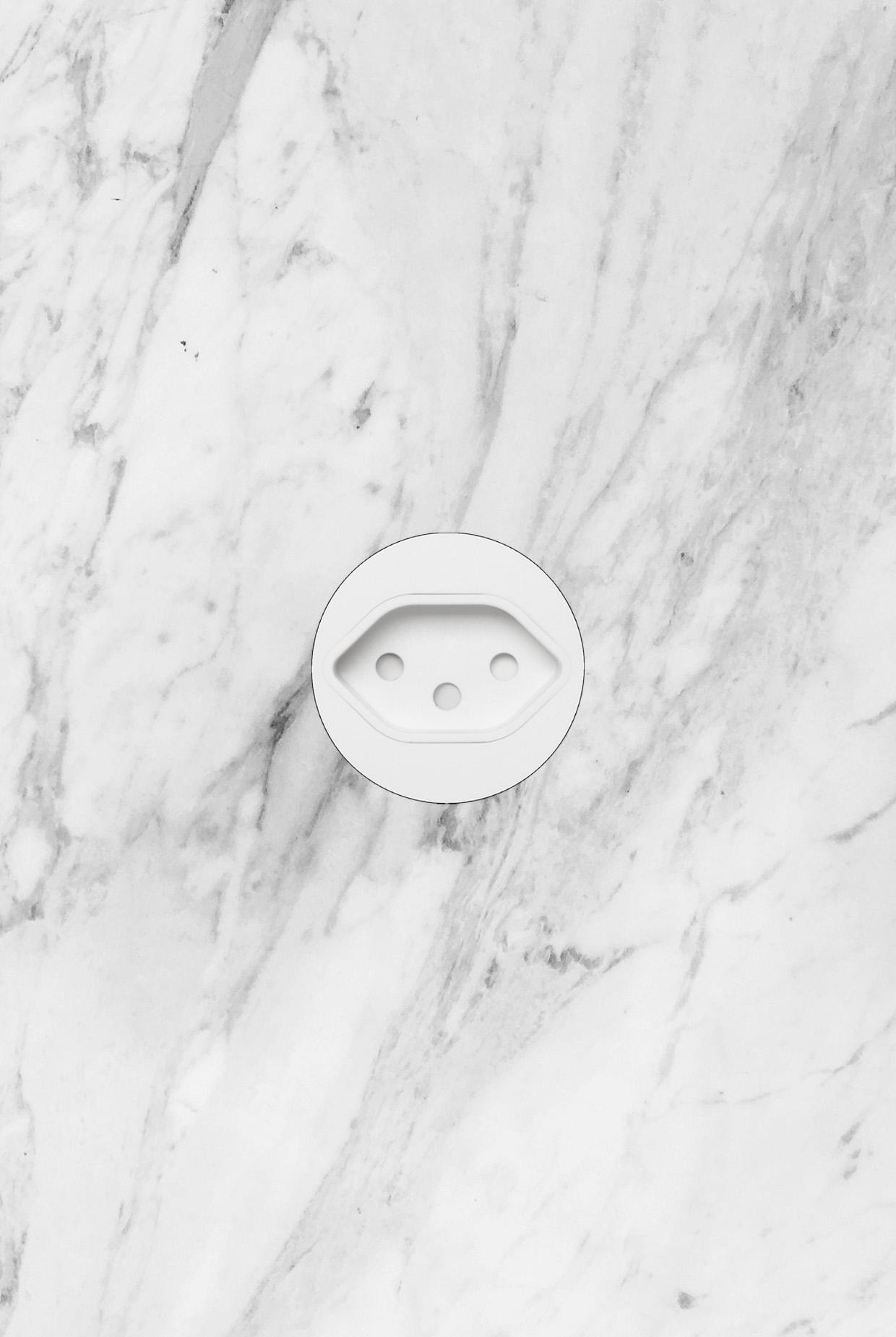

Introducing unifit type J, the minimalist socket for Switzerland. Installs seamlessly into plaster, wood and stone.
Ships within 2 business days.
Product details
Product details
Accessories
Specifications
application
10A, 250V AC, L + N + PE
version
Swiss standard type 13

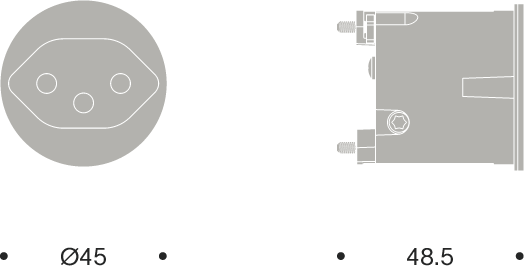

flush mount depth
48.5 mm
wire stripping length
13.8 mm
wire capacity
up to 4 x 2.5 mm² per terminal
wire fixation
screw terminals (TX8)
installation hole
Ø42 mm
flush mount countersink
Ø45.4 x 2.6 mm depth
panel thickness
5.5-36 mm (adjustable lugs)
ambient temperature
-5 till +40˚C
IP- / IK rating
IP20
IK06
marking
CE
other
tamper resistant
back box required
