Push buttons.

Personalise potential-free push buttons for your project.

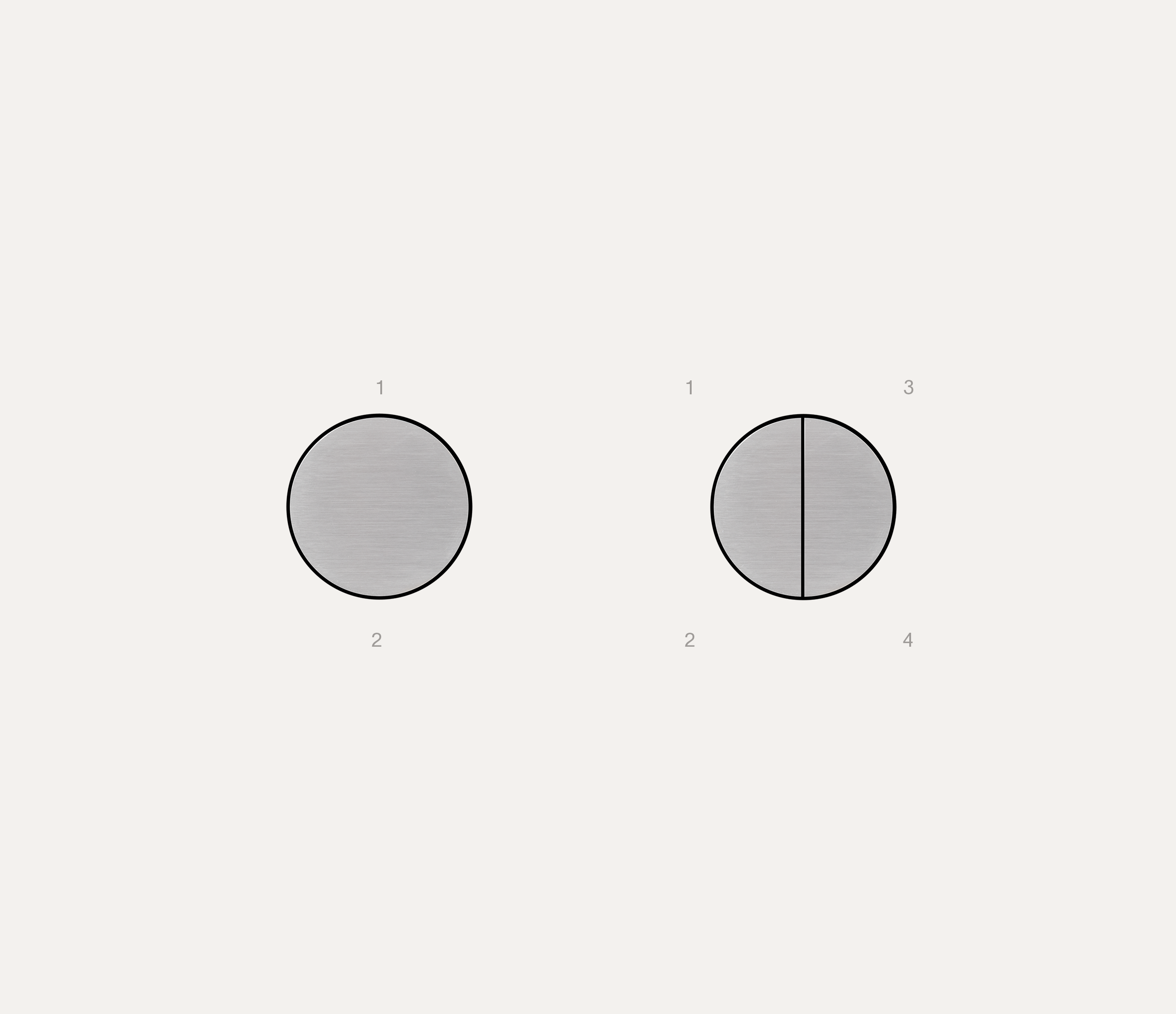

Number of buttons.

Select according to your needs.

Application.

In which surface will you install?

    Compatibility.

    With which holder should it be compatible?

      Finish.

      Select your favourite.
        Select color
        Select color
        Select color

        Ring type.

        Trimless or with a small trim?

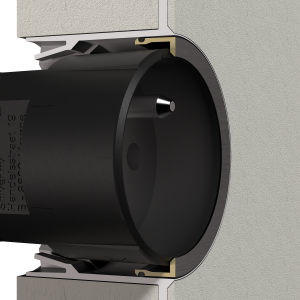

          Trimless

          With a trimless cover ring (Ø48), sockets are completely recessed in the wall (flush). The ultimate look but it requires perfect installation of the installation ring.

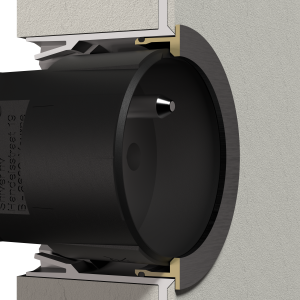

          Small trim

          Small trim (Ø52) is still minimal but comes in front of the wall and covers a small part of it. It hides imperfections near the edge of the installation ring, the solution for easy plastering.

          No product found, please select all options.
          Ships within 2 business days.
          Select all desired options.
          Ships within 2 business days.
          Selected module

          excl. VAT
          Accessories
          Ships within 2 business days.

          Product details

          Downloads

          retrofit/easyfit/backfit - specs
          multifit - specs
          installation

          Accessories

          multifit holder 2.0 8800-2012
          backfit holder 2.0 8800-2016
          retrofit plaster ring 2.0
          removal tool 2.0

          Specifications

          type
          potential-free, 24V, NO
          flush-mounting depth
          36 mm
          adjustability
          every 45° rotatable
          wire capacity
          min. 0.5 - max 1.0 mm² per terminal
          wire fixation
          plug-in terminals
          ambient temperature
          -5 till 40°C
          IP rating
          IP21-D
          IK rating
          IK06
          marking
          CE
          other
          patent pending
