push button 2.0

€ 49,00 – € 249,00  (excl. VAT)

Choose between a potential-free version and a KNX-secure version with the interface built into the switch. Can be rotated in 45° steps for flexible alignment, and works with all rond 2.0 installation kits.



product overview

Product details
Downloads
Configure yours

Better integration with KNX
Reducing noise, for focus

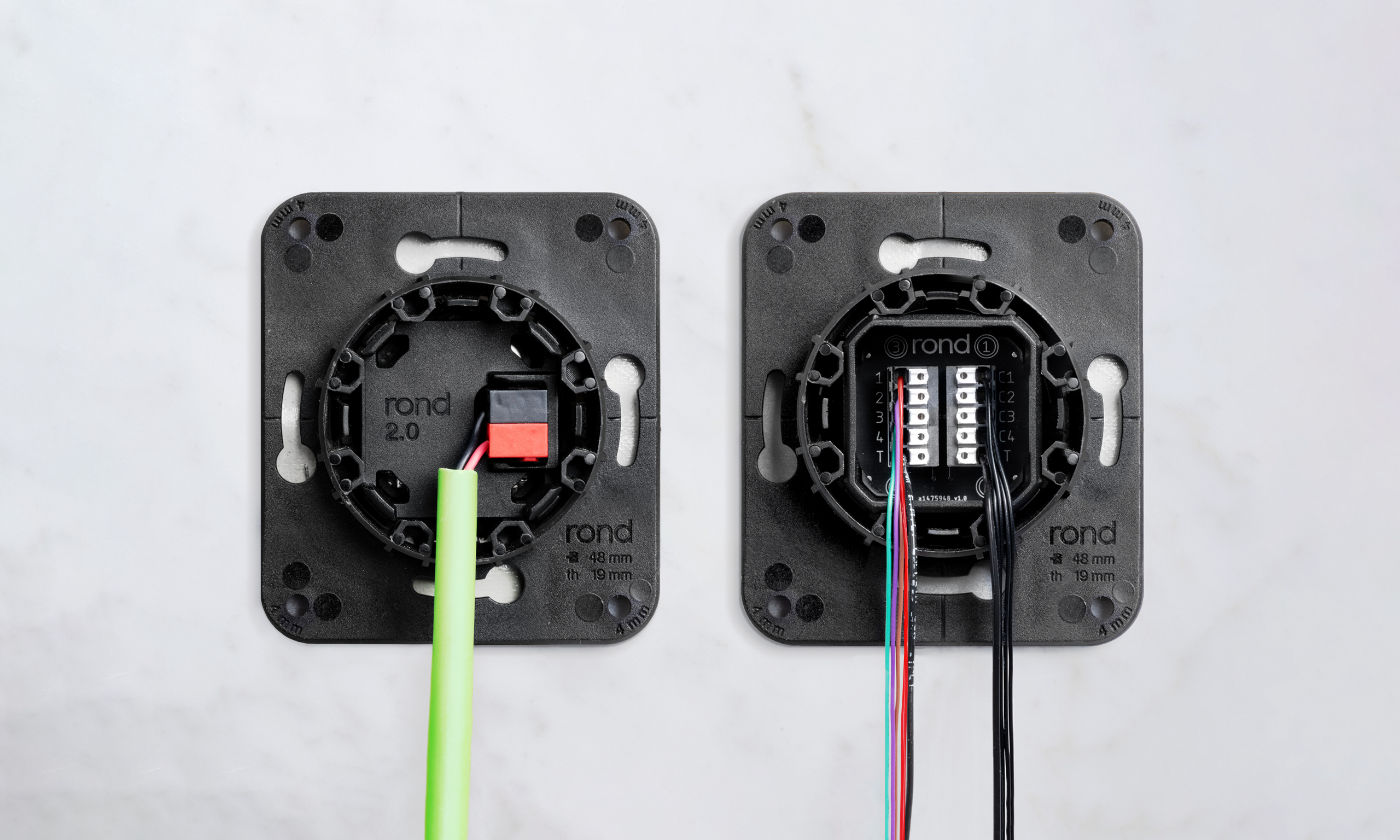

The rond 2.0 push buttons now come in a KNX-native version, taking away technical barriers. No separate interface needed anymore. Up to ten wires become just two. Fewer terminals, fewer chances of a false connection, less time spent on installation.

Product details

Accessories

multifit holder 2.0 8800-2012

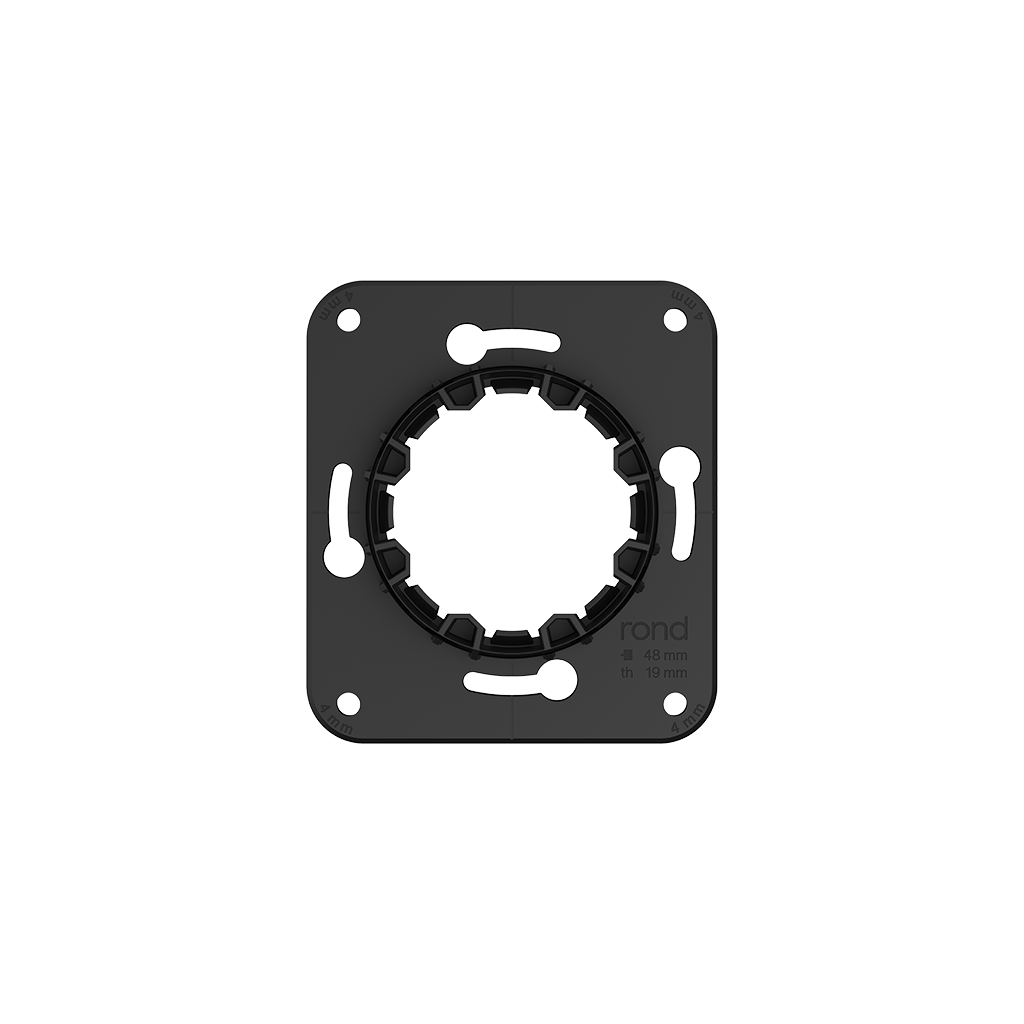

backfit holder 2.0 8800-2016
retrofit plaster ring 2.0
removal tool 2.0

Specifications

type
PF (potential-free), 24V, NO KNX

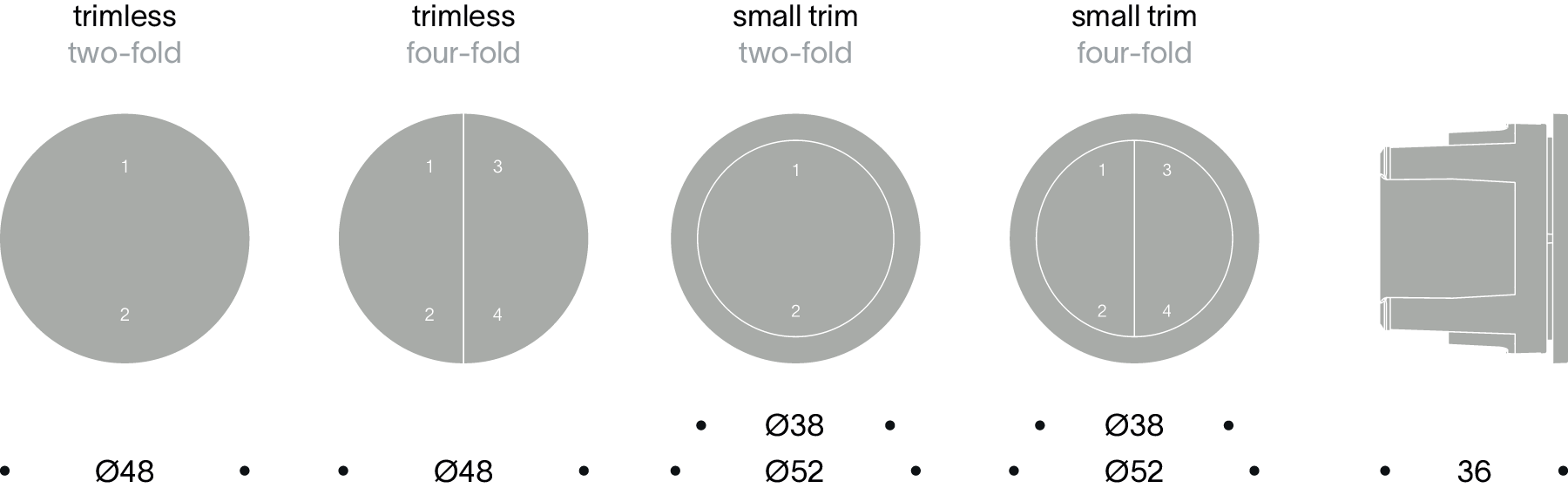

flush-mounting depth
36 mm (retrofit / backfit) 55 mm (multifit)
adjustability
every 45° rotatable
ambient temperature
-5°C till +40°C
IP rating
IP21-D
IK rating
IK06
marking
CE
other
patent pending

Downloads

specs
installation PF
installation KNX

One module
Endless possibilities

compatible products

All products

The new removal tool
Removal just got easier
