USB-C module
30W

The future is USB-C. This 30W rond 2.0 module is designed to charge you mobile phone and tablet without the need of a separate mobile charger. Compatible with all rond 2.0 installation kits. Installation kit not included. Removable after installation.

product overview

 89,00 129,00 (excl. VAT)

Ships in 4-6 weeks.

Recommended accessories

Consider adding these items for a successful installation.

rond | multifit holder

fits in wood, veneer and stone

 19,00 (excl. VAT)

 19,00

rond | retrofit plaster ring

fits in Ø68 junction boxes

 9,00 (excl. VAT)

 9,00

rond | removal tool

access electrical connections

 9,00 (excl. VAT)

 9,00

rond | easyfit plaster box - double

fits in solid, plastered walls

 19,00 (excl. VAT)

 0,00

rond 2.0 | easyfit plaster box

rond | easyfit plaster box - single

fits in solid, plastered walls

 19,00 (excl. VAT)

 0,00

rond | backfit holder

fits in wood, veneer and stone

 19,00 (excl. VAT)

 0,00

all-new module
endless possibilities

Installing in wood, veneer, stone, thin or thick plaster? With rond 2.0, the possibilities are endless. Choose the appropriate kit - multifit, backfit, retrofit or easyfit - for your specific application.

Product details

icoon gewicht 0.2

Specifications

function
2X USB-C port (30W)
power supply
230V

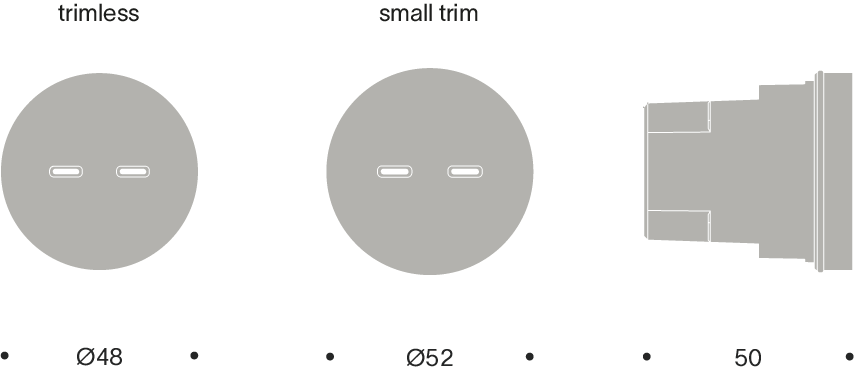

flush-mounting depth
retrofit/easyfit/backfit 50 mm multifit 55 mm
ambient temperature
-5 till 40°C
IP rating
IP21
IK rating
IK06

multifit holder
fits in wood, veneer and stone

The ultimate solution for furniture applications. With an outside diameter of only 52mm. Requires a Ø48 hole and an 8-30mm panel thickness. Flush or with a small trim? The choice is yours.

removable
freely rotatable
wide range of finishes

retrofit plaster ring
fits in universal Ø68 junction boxes

The ultimate solution for universal junction boxes, round or square. For both new build and renovations. Available trimless or with a small trim, for easy plastering. Electrical connections remain accessible after plastering. Removable by tool.

removable
every 45° rotatable
wide range of finishes

easyfit plaster box
fits in solid, plastered walls

The ultimate solution for brick walls. The Ø130 rond plaster box allows up to 3 times faster installation. Thanks to the all-new rond 2.0 module, electrical connections now remain accessible after plastering. Available trimless or with a small trim, for easy plastering. Same design, new possibilities.

removable
every 45° rotatable
wide range of finishes

backfit holder
fits in wood, veneer and stone

The backfit holder allows you to install rond 2.0 modules in wood, veneer and stone. Requires a Ø48 hole and a 19 mm panel thickness. Trimless or with a small trim? The choice is yours.

removable
every 45° rotatable
wide range of finishes

removable by tool
always accessible

The rond 2.0 USB-C (30W) can also be removed from its kit after installation. In this way, wires remain accessible at any time.
