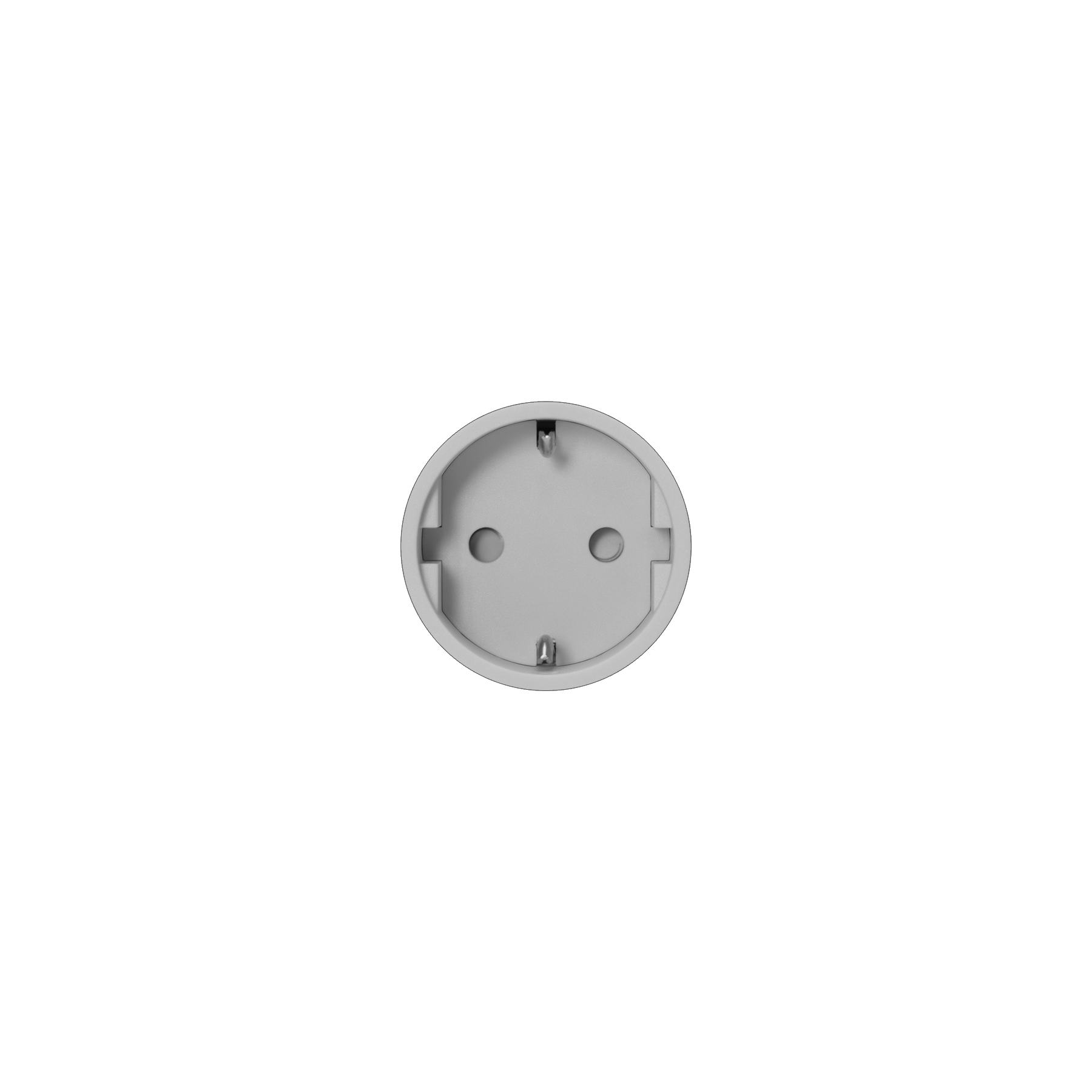

unifit socket type E/F

€ 69,00  (excl. VAT)

The world’s smallest socket. A single, all-in-one module that installs seamlessly into plaster, wood and stone. Corded or hardwired? The choice is yours. Requires a Ø42 hole.



product overview

Product details
Downloads
Configure yours

Corded or hardwired.
The choice is yours.

Configure

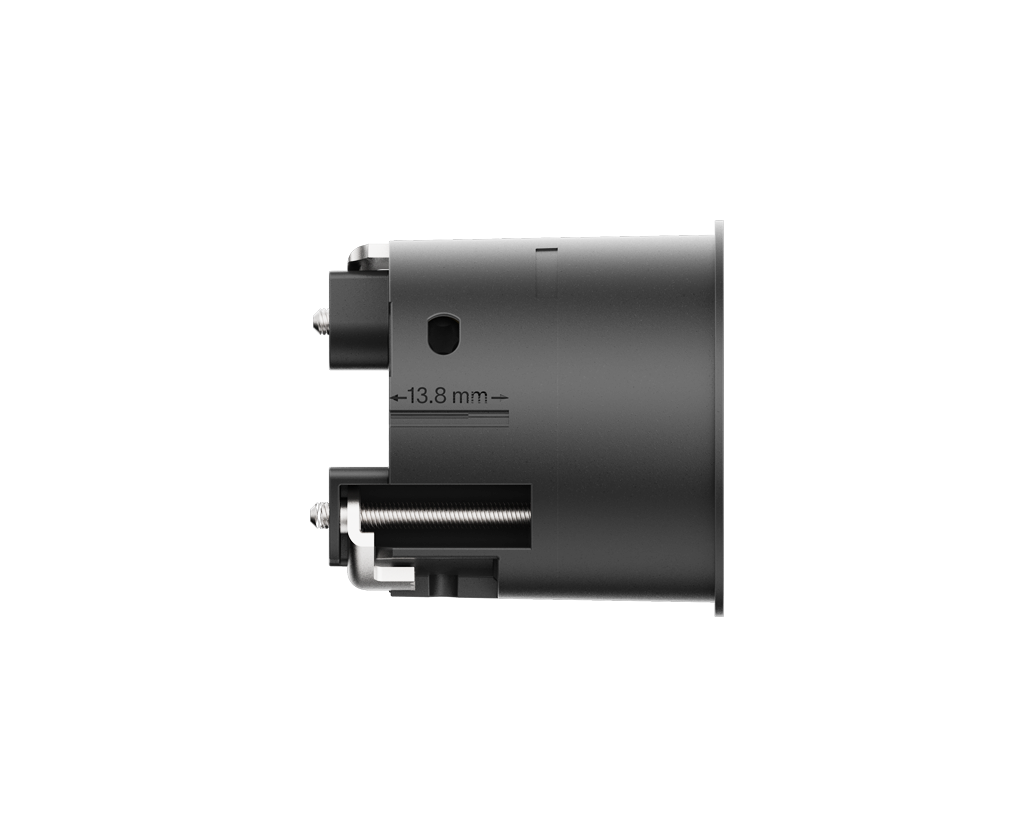

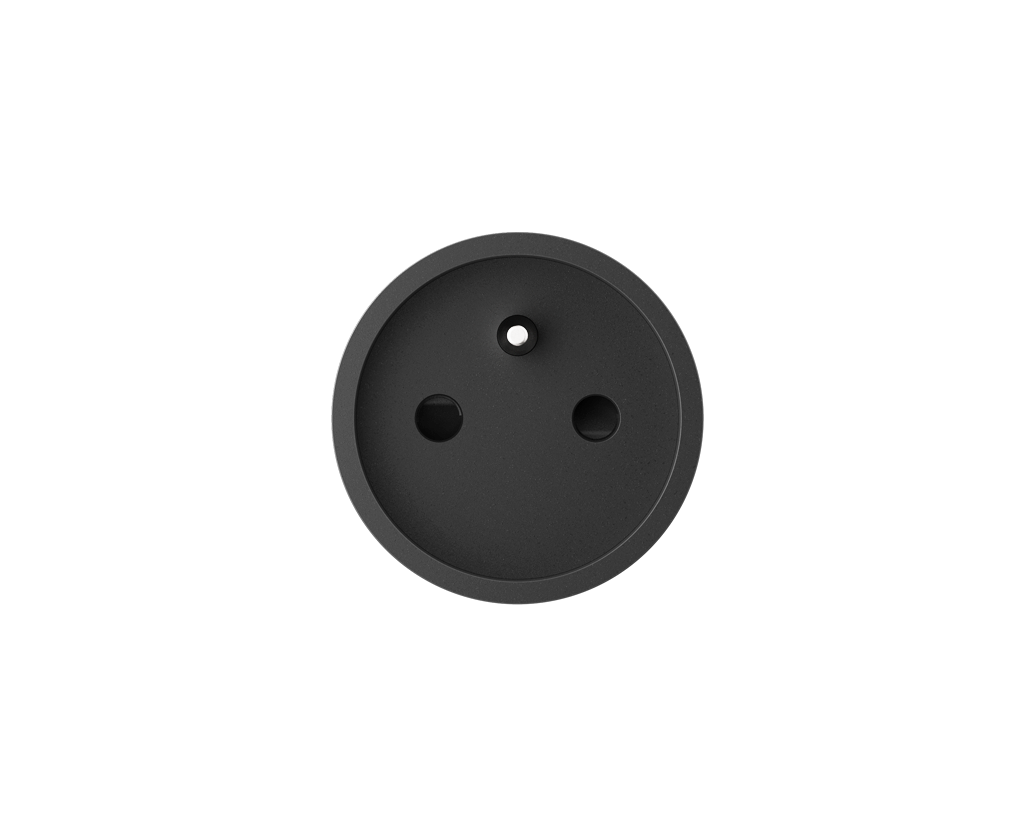

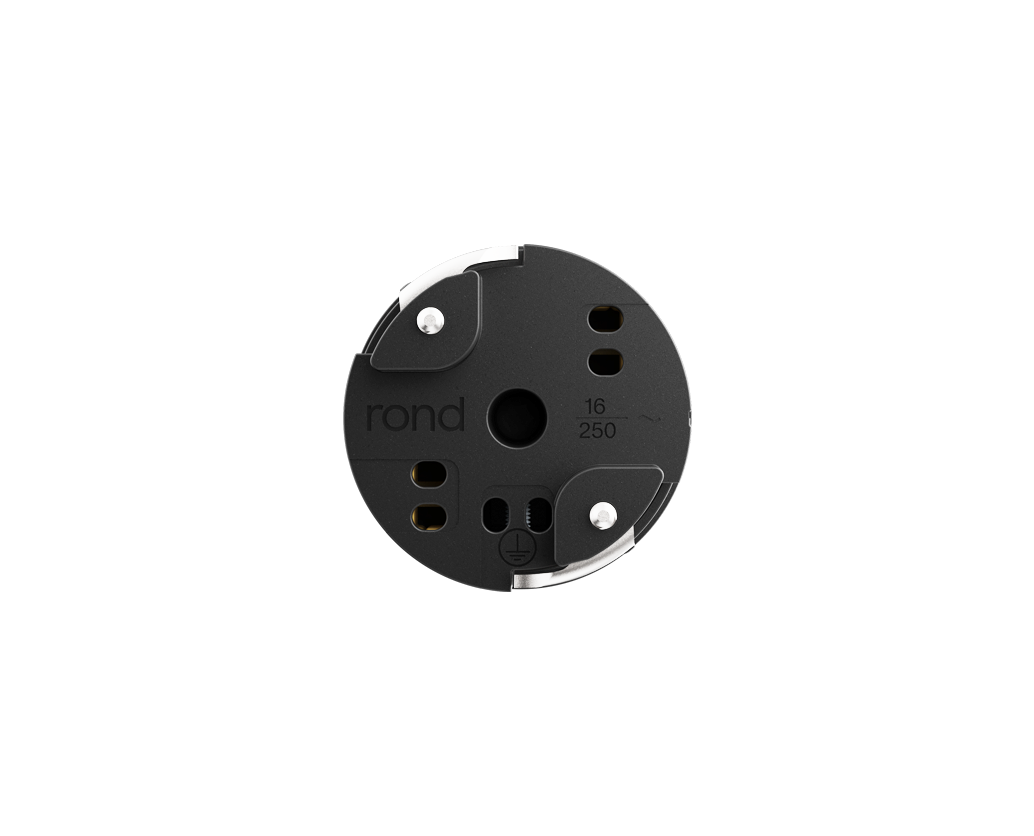

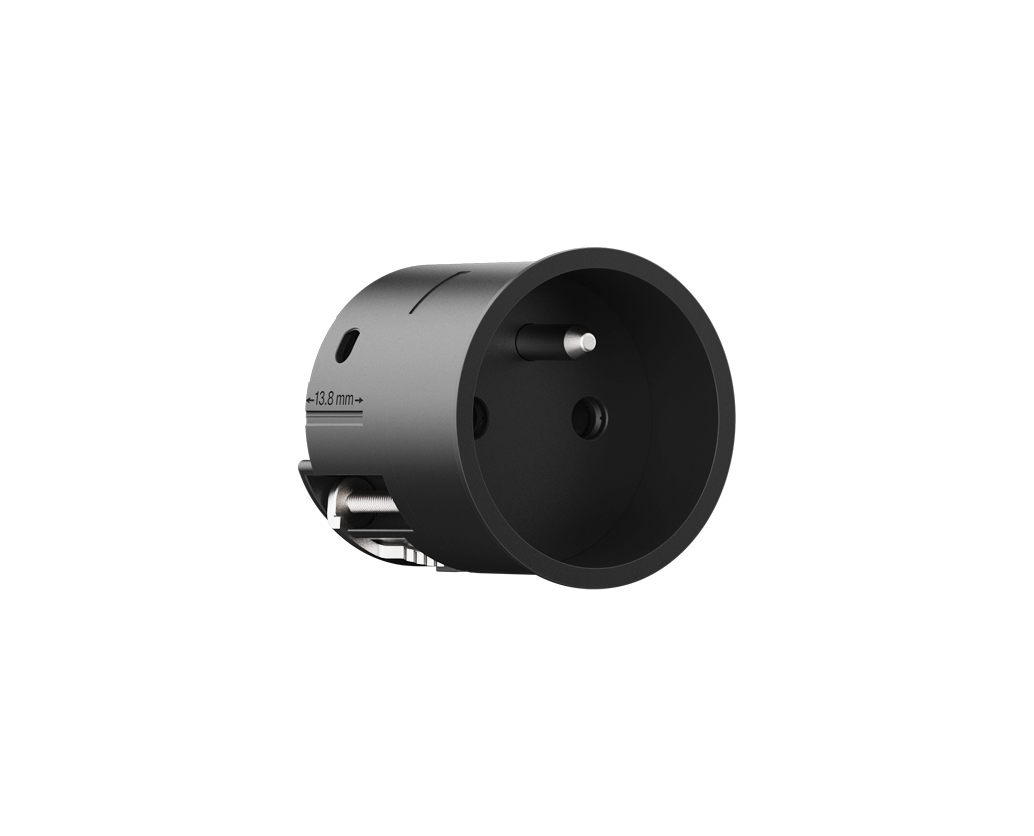

  • Unifit hardwired

    Comes with screw terminals.

    € 69 excl. VAT
    type E/F - 16 Amp, 250 Volt
    comes with screw terminals, junction box required
    requires a Ø42 hole and a 16-32 mm panel thickness
    compatible with unifit plaster ring adjustable (optional)
    removable without tool
    Installation

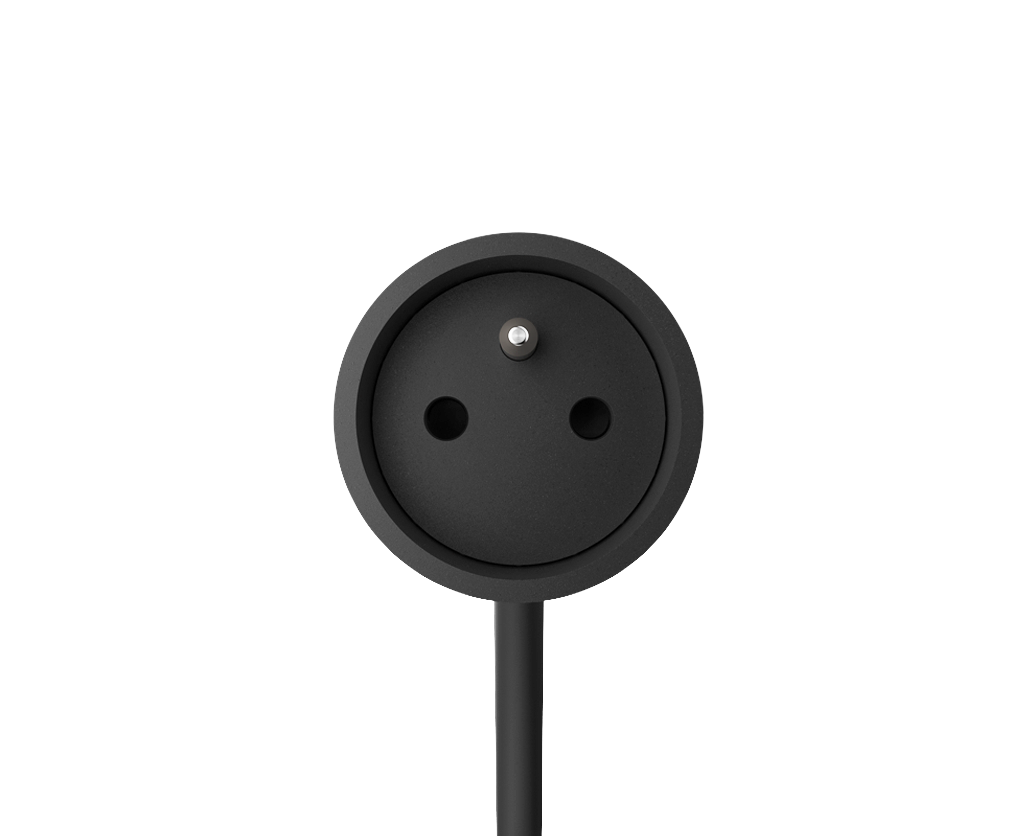

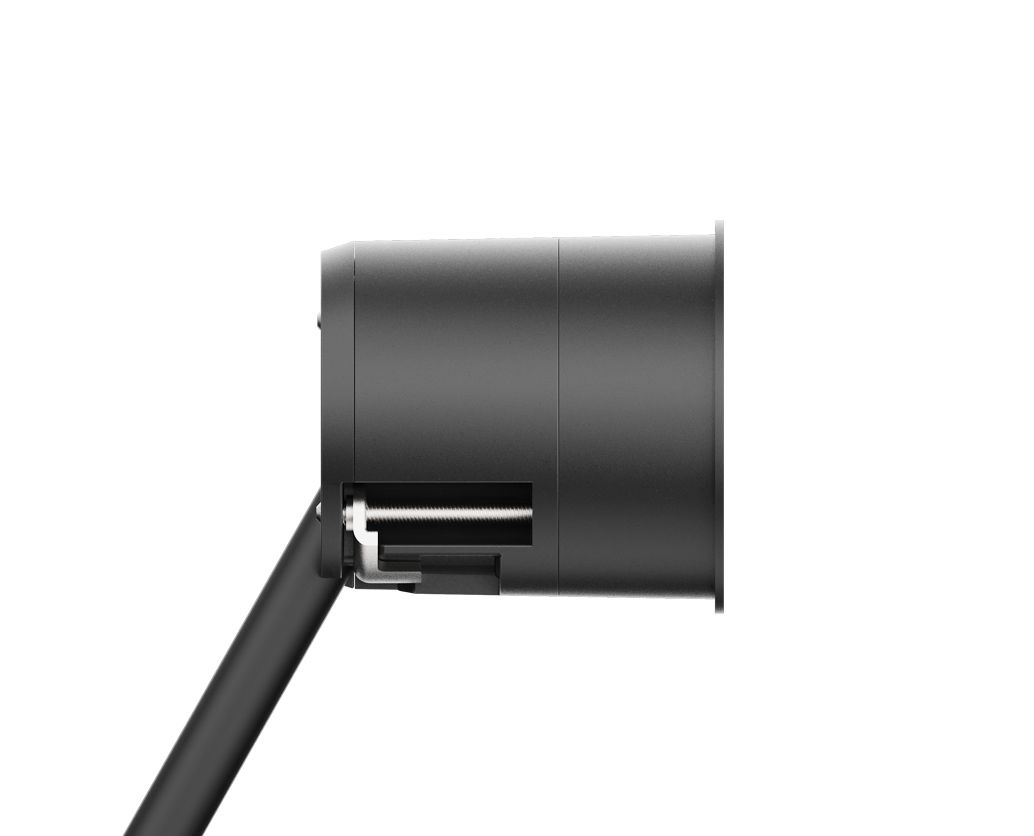

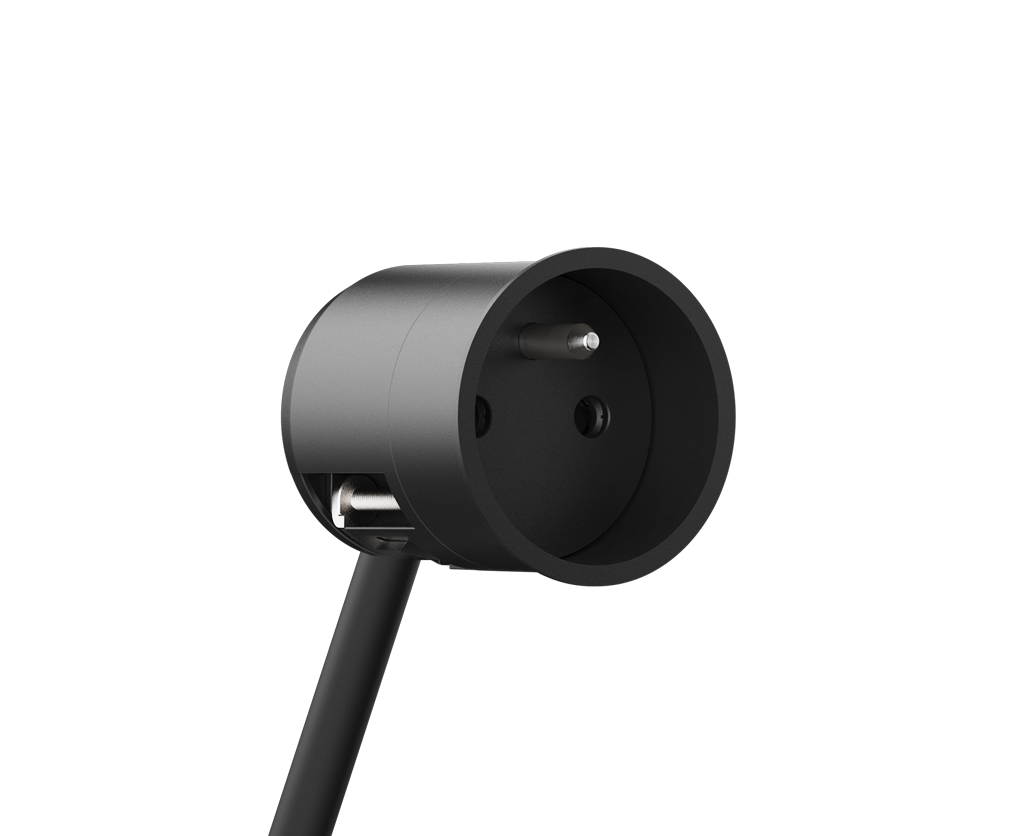

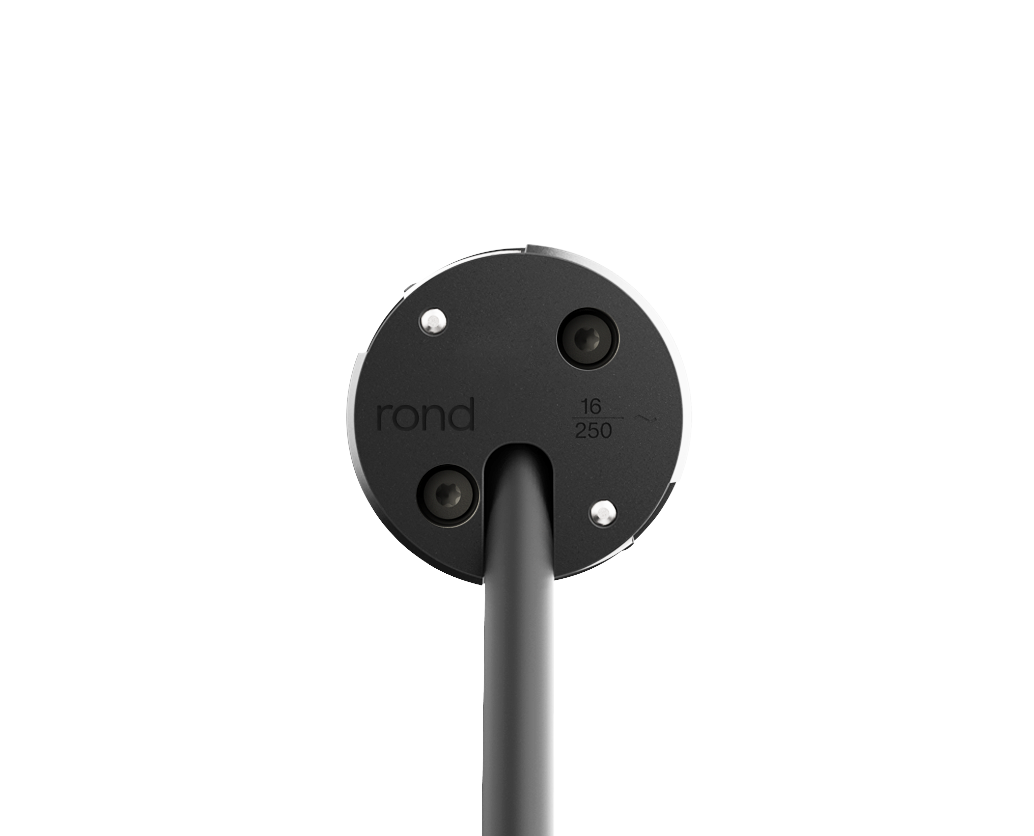

  • Unifit corded

    Comes with a 1.5m cord + plug.

    € 69 excl. VAT
    type E/F - 16 Amp, 250 Volt
    comes with 1.5 m cable and plug
    requires a Ø42 hole and a 16-32 mm panel thickness
    compatible with unifit plaster ring adjustable (optional)
    removable without tool
    Installation

Product details

Accessories

plaster ring adjustable unifit type E/F 4200-1000

Specifications

installation hole
Ø42 mm
flush mount countersink
Ø45.2 x 1 mm depth
panel thickness
16-32 mm (adjustable lugs)
application
16A / 250V
flush mount depth
55 mm
ambient temperature
-5 till +40˚C
IP- / IK rating
IP21-D IK06
connection hardwired
screw terminals
connection corded
1.5m cord + schuko plug
marking
CE
other
patent pending

Downloads

corded E - specs
corded F - specs
corded - installation
hardwired E - specs
hardwired F - specs
hardwired - installation

Installation in plaster.

adjustable plaster ring

  • + for thin and thick plastered walls
  • + adjustable for plaster between 3.6 and 20mm
  • + compatible with universal junction boxes, round or square

Installation in furniture.

unifit socket corded

Fits in wood and stone, without junction box.

  • + made for furniture solutions
  • + comes with a 1.5m power cord
  • + fits in a 16 to 32mm panel thickness

Installation in gyproc.

without plaster ring

  • + works with different gyproc thicknesses
  • + requires OSB reinforcement behind the gyproc
  • + no extra plaster ring required, comes with a 1mm trim
